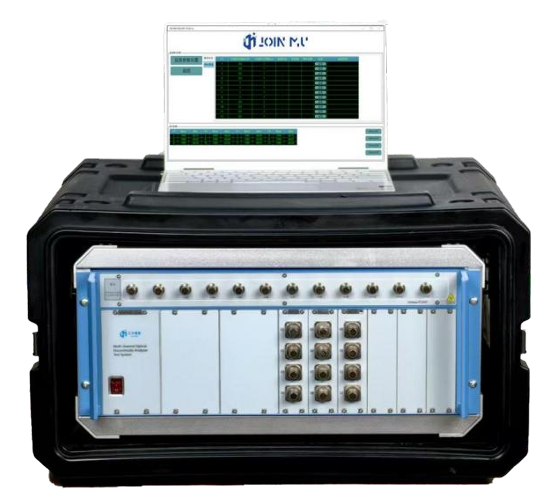

MAP900-ODA Tester 10nS 6~40dBm
MAP900-ODA Device, Environmental Test, ( ), ( )
Save to Favorites
Overview

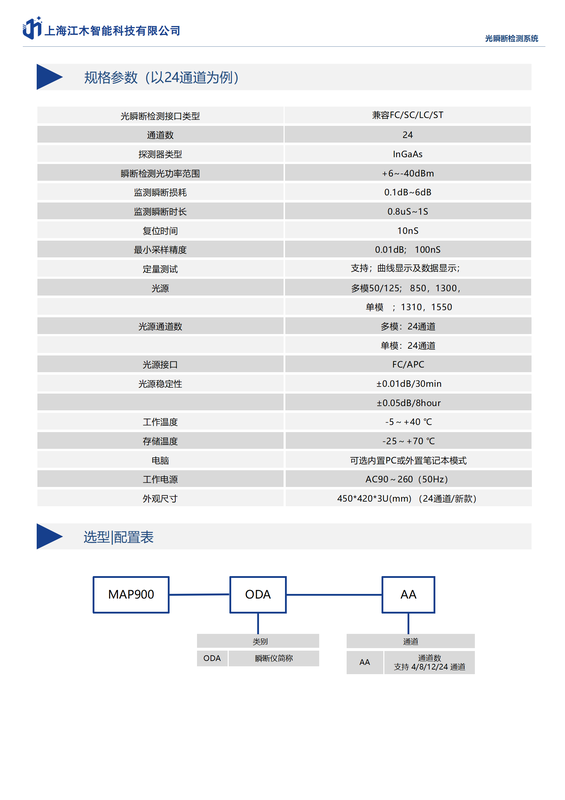

Specifications
| Parameter | Value |
|---|---|
| Number of Channels | 24 |
| Detector | InGaAs |
| Power | +6~-40dBm |
| Light Source | Multimode 50/125; 850, 1300; Single-Mode; 1310, 1550 |
| Light Source Number of Channels | Multimode: 24; Single-Mode: 24 |
| Light Source | FC/APC |
| Light Source | ±0.01dB/30min；±0.05dB/8hour |
| Operating Temperature | -5～+40 ℃ |
| Storage Temperature | -25～+70 ℃ |
| Dimensions | 4504203U(mm) (24 / ) |
| category | Abbreviation of instantaneous circuit breaker |
| aisle | Channel number supports 4/8/12/24 channels |
| Optical interrupt detection interface type | Compatible with FC/SC/LC/ST |
| Monitor transient losses | 0.1dB~6dB |
| Monitor the duration of transient interruption | 0.8uS~1S |
| reset time | 10nS |

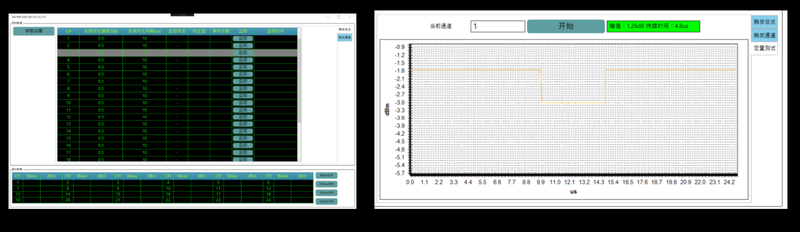

| Quantitative testing | Support; curve display and data display |
| computer | Optional built-in PC or external laptop mode |
