Dense Fiber Array ACTP-16/32/48/64/96/132 (Custom Product)

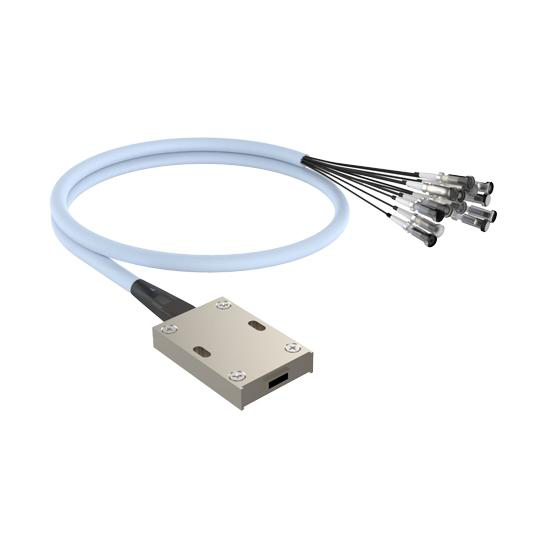

The ACTP-16/32/48/64/96/132 is a customized dense fiber array from BWT, in which multiple optical fibers are precisely arranged in a compact metal housing with a tight 125μm fiber pitch and ±4μm linearity deviation. It delivers high transmittance of over 90% and supports 16 to 132 channels with 50/60μm core multimode fibers. The array is available with FC, ST or SMA905 connectors and a standard 1.0m fiber length that can be customized upon request. It is designed for computer-to-plate (CTP) printing systems and scientific research applications requiring high-density, high-precision multi-channel optical delivery.
Save to Favorites
Overview
Specifications

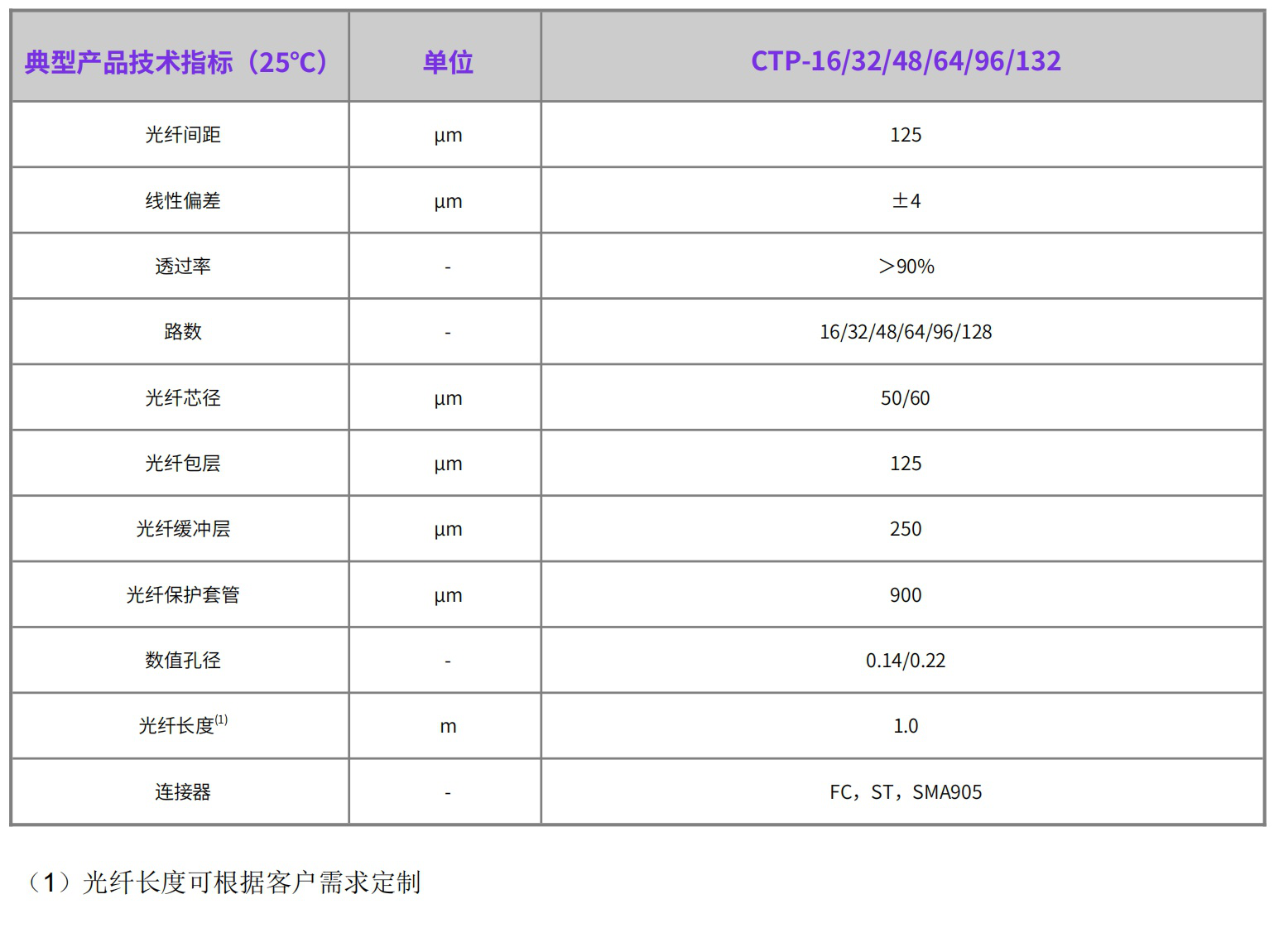

| Parameter | Value |
|---|---|
| Fiber Pitch | 125μm |
| Linearity Deviation | ±4μm |
| Transmittance | >90% |
| Number of Channels | 16/32/48/64/96/128 |
| Fiber Core Diameter | 50/60μm |
| Fiber Cladding Diameter | 125μm |
| Fiber Buffer Diameter | 250μm |
| Fiber Protection Tube Diameter | 900μm |
| Numerical Aperture (NA) | 0.14/0.22 |
| Fiber Length | 1.0m |
| Test Condition | 25℃ |

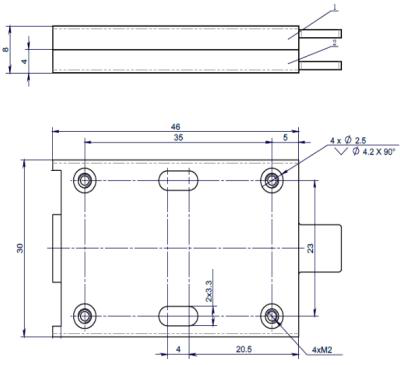

| Outline Dimensions | 46×30×8mm |
| Mounting Hole | 4×Φ2.5mm, Φ4.2×90° |
| Mounting Thread | 4×M2 |
| Customization Note | Fiber length can be customized according to customer requirements |
Applications
Key Features
Datasheet
Supplier Information
Related Products
-
Temperature-Control Card LTC-B2410
Semiconductor Laser Accessories
Sinsouteklaser
Input Voltage [DC]: DC 24V Output Voltage [Adaptive]: 3V~21.6V（ Adaptive ） Output Current: ≤10A
The LTC-B2410 temperature-control card offers high reliability, high power density and high temperature stability for equipment requiring precise control. It drives Peltier coolers, heating plates and heater rods, mainly in aerospace, medical and biological applications.
-
Analog Servo Module Dospectrum Servo-A10(DP)
Semiconductor Laser Accessories
Dospectrum
Overall dimensions: 259mmX109.5mmX47.24mm Operating voltage / Current: ±15V/1A Inv,Non-Inv: -5~+5V
-
Laser Amplitude Stabilization Module AOM(DP)
Semiconductor Laser Accessories
Dospectrum
Overall dimensions: 261x80x55nm Overall Machine Weight: <2.5kg Wavelength Range: 400~2000nm
-
TCB-NA Temperature Control Board ，0.1 degrees ，24V10A
Semiconductor Laser Accessories
Shafan-oe
Board Supply Voltage [Depends on TEC voltage; supply voltage is the TEC voltage.]: 4.5-27V; depends on TEC voltage, with supply voltage equal to TEC voltage Board Supply Current [Switching Power Supply Rated Current Must Exceed TEC Current]: Depends on TEC; switching supply rated current must exceed TEC current. TEC Voltage [Must Be Greater Than or Equal to the Supply Voltage]: 5V–27V, Must Be Greater Than or Equal to the Supply Voltage
Compact and economical, with temperature-control accuracy of ±0.1 degrees. For the NA series, supply voltage must not exceed the TEC rated voltage, and switching-supply output current must exceed the TEC rated current. NA has no SU command, so maximum output voltage is not adjustable. Cooling efficiency is 10% lower than NE.
-
TCB-NE-AH Series Temperature-Control Board, 0.01, General-Purpose High Precision, High Power (12V24A, 24V18A) TCB-NE-AH-a-y(z)
Semiconductor Laser Accessories
Shafan-oe
Board Supply Voltage [User-Specified]: Two versions: 5V or 7.5-27V, specified by the user. Standard 5V or 7.5/12/15/24 supplies are recommended. The TEC rated voltage should preferably equal or slightly exceed the supply voltage; a lower TEC rating is acceptable with a limited maximum output ratio. Board Supply Current: Determined by the actual maximum TEC operating power TEC Voltage [Depends on the Supply Voltage]: 1V – 24V(Depends on the Supply Voltage)
The TCB-NE-AH thermoelectric cooler temperature control board includes a complete PID algorithm and operates in continuous-output mode, achieving temperature control accuracy of 0.01 degrees. It supports the common 10k NTC temperature sensor and multiple TEC configurations, using DC power. This is the high-current version of the TCB-NE, suitable for high-power, high-precision temperature control such as high-power LDs.
