Temperature-Control Card LTC-B2410
The LTC-B2410 temperature-control card offers high reliability, high power density and high temperature stability for equipment requiring precise control. It drives Peltier coolers, heating plates and heater rods, mainly in aerospace, medical and biological applications.
Save to Favorites
Overview

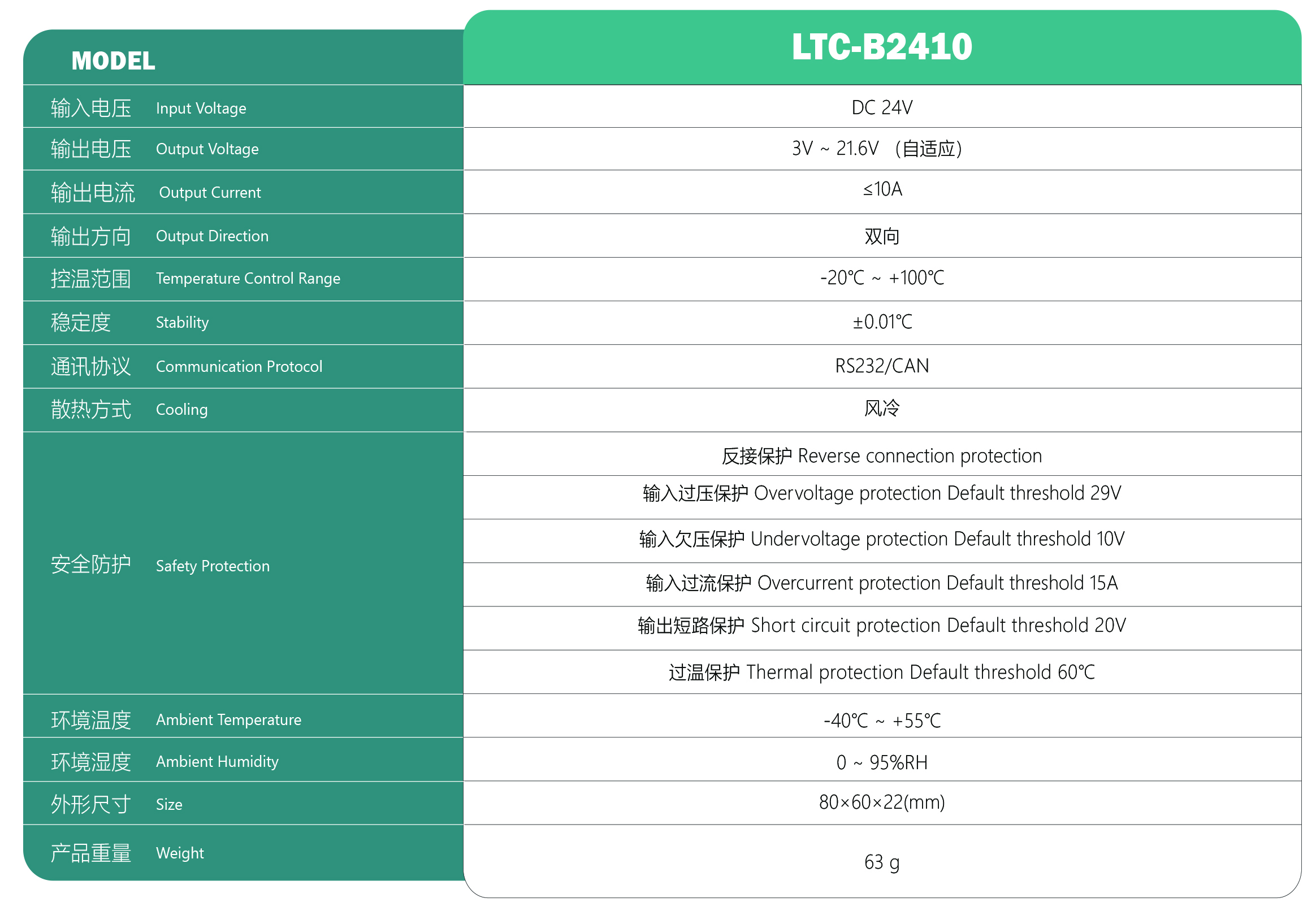

Specifications
| Parameter | Value |
|---|---|
| Input Voltage [DC] | DC 24V |
| Output Voltage [Adaptive] | 3V~21.6V（ Adaptive ） |
| Output Current | ≤10A |
| Output Direction | Bidirectional |
| Temperature-Control Range | -20°C~+100°C |
| Stability | ±0.01°C |
| Communication Protocol | RS232/CAN |
| Heat dissipation Method | Air cooling |
| Safety Protection - Reverse-Polarity Protection | Reverse-Polarity Protection Reverse connection protection |
| Safety Protection-Input Overvoltage Protection [Default Threshold] | 29V |
| Safety Protection-Input Undervoltage Protection [Default Threshold] | 10V |
| Safety Protection - Input Overcurrent Protection [Default Threshold] | 15A |
| Safety Protection-Output Short-Circuit Protection [Default Threshold] | 20V |
| Safety Protection - Overtemperature Protection [Default Threshold] | 60°C |
| Ambient Temperature | -40°C~+55°C |
| Ambient Humidity | 0~95%RH |
| Overall dimensions | 80×60×22(mm) |
| Product weight | 63g |
Key Features
