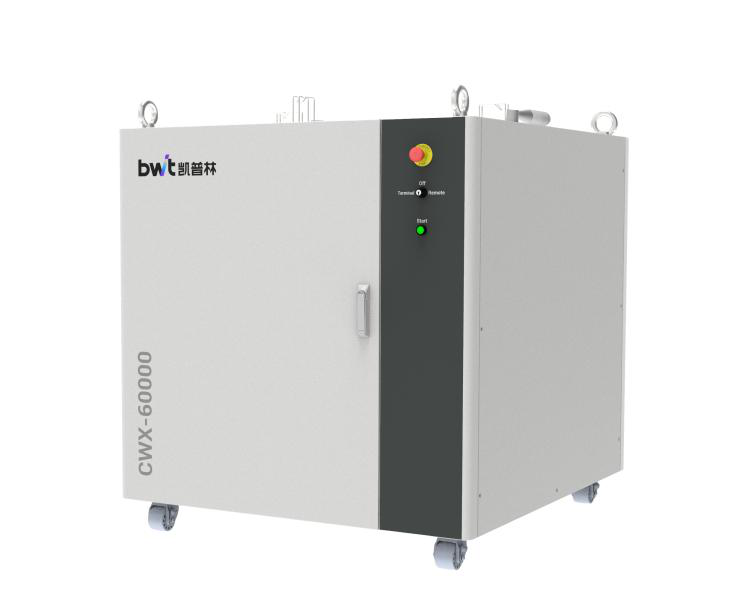

Thunder 60kW Fiber Laser CWX-60000
The BWT Thunder 60kW Fiber Laser (model CWX-60000) delivers excellent beam quality, allowing the laser beam to be focused close to the diffraction limit for precision processing. Both continuous-wave (CW) and modulated pulse operation modes are selectable, greatly reducing the heat-affected zone during processing. With reliable performance and a modular all-fiber design, all optoelectronic components are sealed inside a rugged enclosure that can withstand harsh industrial application conditions. The product is widely used in laser cutting, laser welding and laser drilling, and can process various steels, aluminum-based and nickel-based alloys, titanium alloys, and alumina ceramics. BWT also has professional laser application engineers dedicated to providing high-quality laser system solutions.
Save to Favorites
Overview
Specifications

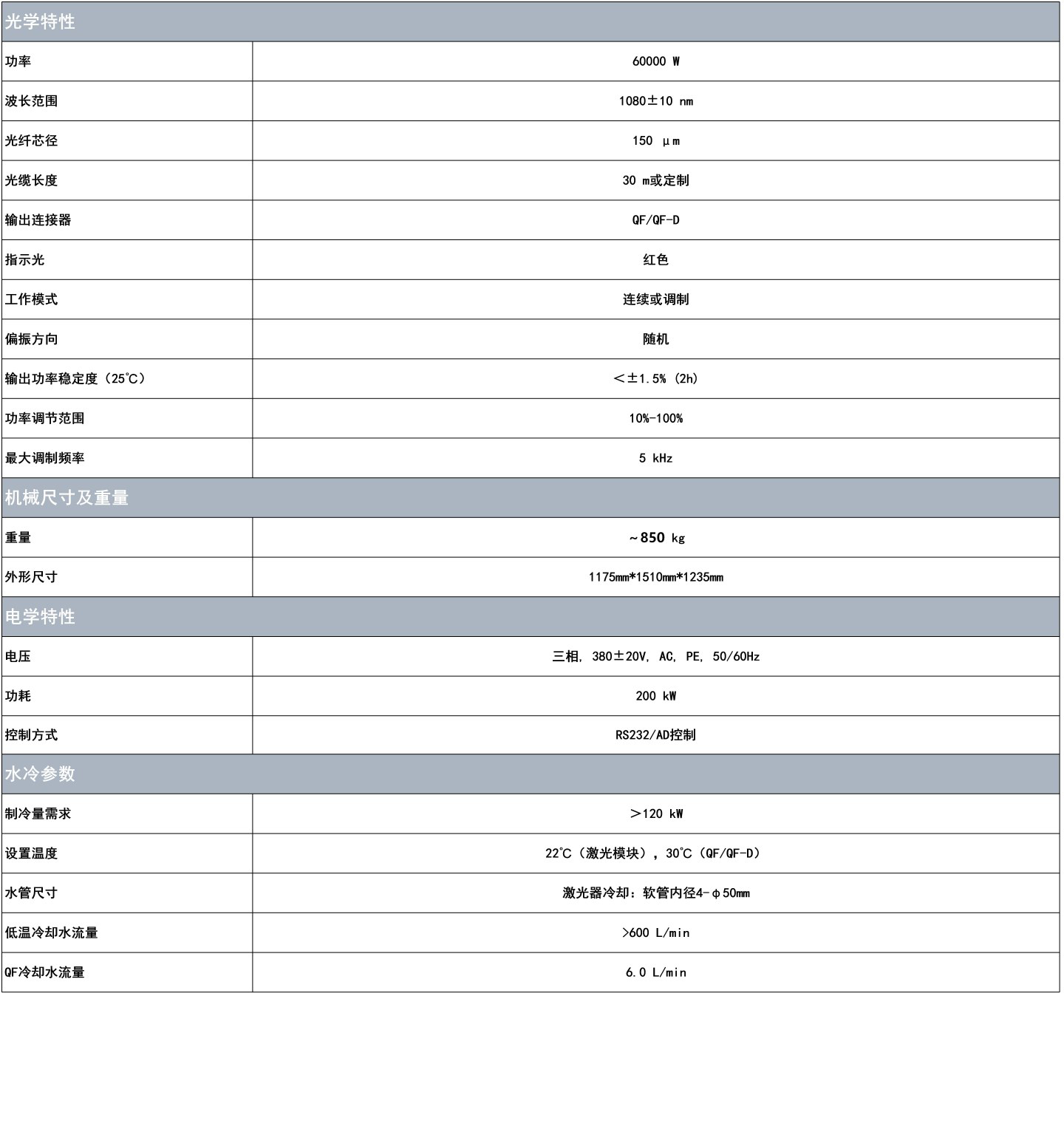

| Parameter | Value |
|---|---|
| Power | 60000W |
| Fiber Core Diameter | 150μm |
| Fiber Cable Length | 30 m or custom length |
| Output Connector | QF/QF-D |
| Pilot Light | Red |
| Operation Mode | Continuous or modulated |
| Polarization | Random |
| Power Adjustment Range | 10%-100% |
| Maximum Modulation Frequency | 5kHz |
| Weight | ~850kg |

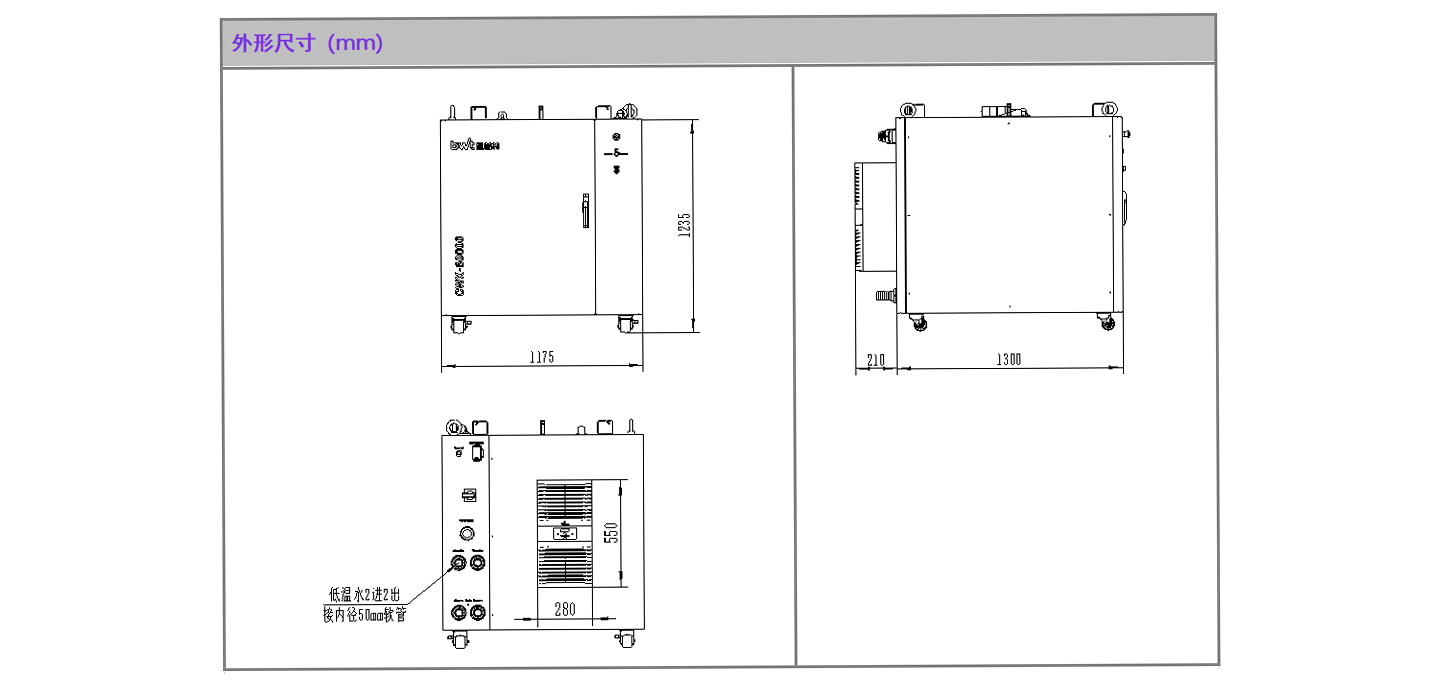

| Dimensions | 1175mm*1510mm*1235mm |
| Power Consumption | 200kW |
| Control Mode | RS232/AD control |
| Cooling Capacity Requirement | >120kW |
| Set Temperature | 22 °C (laser module), 30 °C (QF/QF-D) |
| Water Pipe Size | Laser cooling: hose ID 4-φ50 mm |
| Low-Temperature Cooling Water Flow | >600L/min |
| QF Cooling Water Flow | 6.0L/min |
| Low-Temperature Water Interface | 2 inlets and 2 outlets, for connection to hoses with 50 mm ID |
Applications
Key Features
Datasheet
