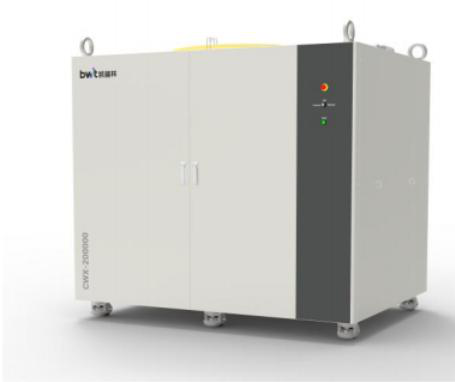

Thunder 200kW Fiber Laser CWX-200000
The BWT Thunder 200kW Fiber Laser (CWX-200000) delivers excellent beam quality, allowing the laser beam to be focused close to the diffraction limit for precision machining. It offers both continuous-wave (CW) and modulated operating modes, greatly reducing the heat-affected zone during processing. Featuring reliable performance and a modular all-fiber design, all optoelectronic components are encapsulated in a rugged enclosure that withstands harsh industrial application conditions. This product series is widely used in laser cutting, laser welding, laser drilling and other fields, and can process various steels, aluminum-based and nickel-based alloys, titanium alloys, alumina ceramics, and more. In addition, BWT provides professional laser application engineers dedicated to delivering high-quality laser system solutions.
Save to Favorites
Overview

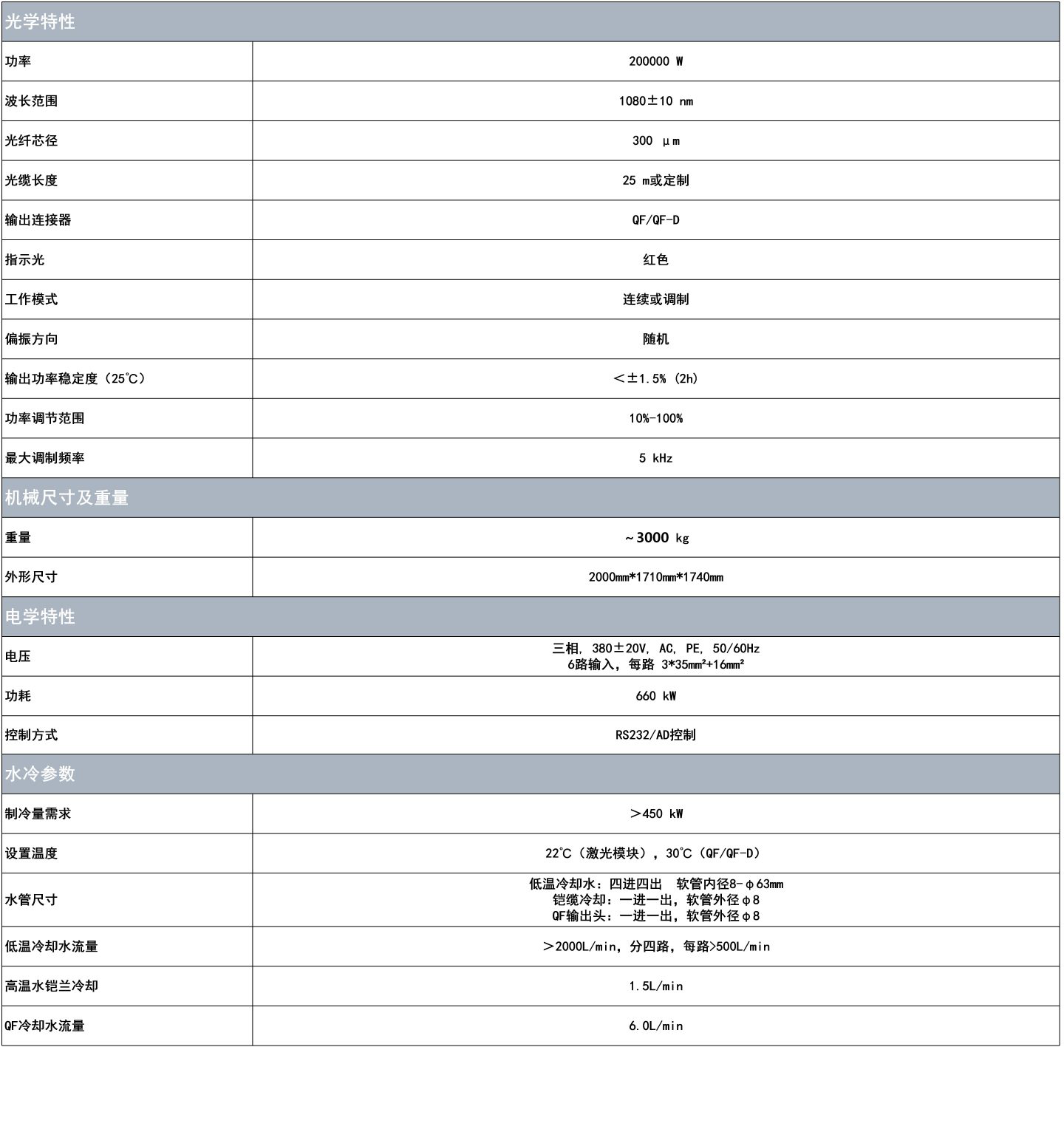

Specifications
| Parameter | Value |
|---|---|
| Power | 200000W |
| Fiber Core Diameter | 300μm |
| Fiber Cable Length | 25 m or custom length |
| Output Connector | QF/QF-D |
| Indicator Light | Red |
| Operating Mode | Continuous or modulated |
| Polarization | Random |
| Power Adjustment Range | 10%-100% |
| Maximum Modulation Frequency | 5kHz |
| Weight | ~3000kg |

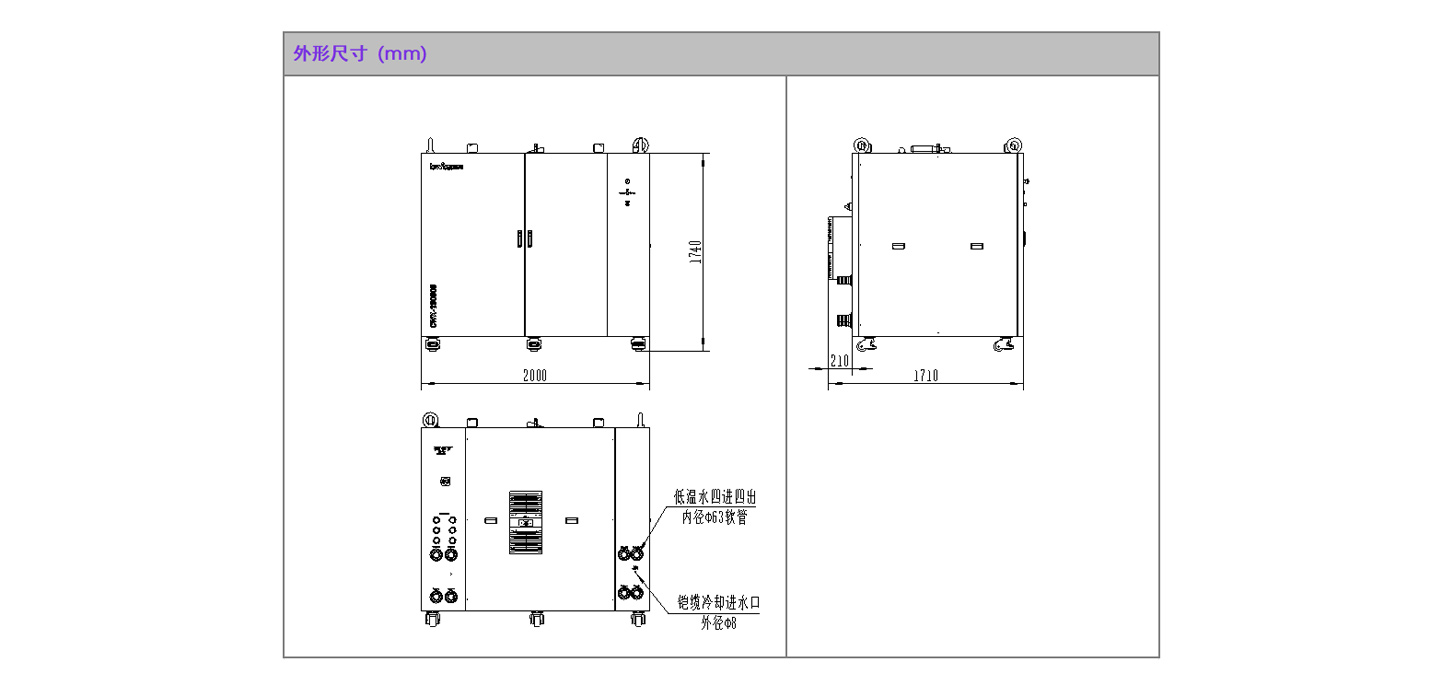

| Dimensions | 2000mm*1710mm*1740mm |
| Power Consumption | 660kW |
| Cooling Capacity Requirement | >450kW |
| Set Temperature | 22 °C (laser module), 30 °C (QF/QF-D) |
| Water Pipe Size | Low-temperature cooling water: 4 inlets and 4 outlets, hose ID 8-φ63 mm; armored cable cooling: 1 inlet and 1 outlet, hose OD φ8; QF output head: 1 inlet and 1 outlet, hose OD φ8 |
| Low-temperature Cooling Water Flow Rate | >2000 L/min, split into 4 circuits, each >500 L/min |
| High-temperature Water Cable Cooling Flow | 1.5L/min |
| QF Cooling Water Flow Rate | 6.0L/min |
