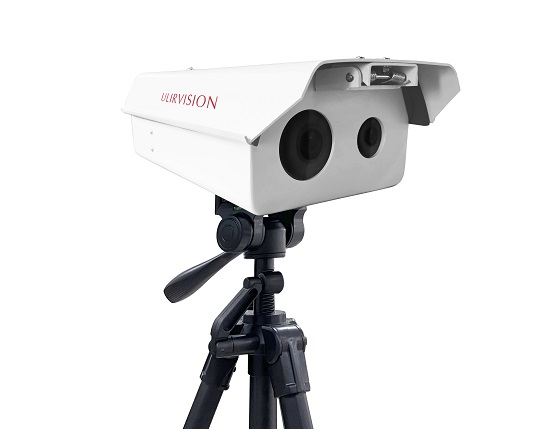

Online Body-Temperature Monitoring Infrared Thermal Camera
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Type | Uncooled focal plane microcalorimetry type |
| Pixels | 384×288 |
| Wavelength Range | 7.5~14μm |
| Thermal Sensitivity | 65mK |
| Minimum Imaging Distance | 50cm |
| Spatial Resolution | 1.889m |
| Focusing | fixed focus |
| Lens | 9mm |
| SensorType | 1/2.8"SONY Progressive Scan CMOS |
| Technical Specification - Standard | H.264 encoding type: BaseLine Profile / Main Profile |
| Technical Specification | 1920*1080/1280*720 (frame rate 1~30fps adjustable) |
| Technical Specification | 704*576/640*480/640*352/320*240 (frame rate 1~30fps adjustable) |
| VideoBitrate | 30Kbps～16Mbps bit rate adjustable; supports fixed bit rate and variable bit rate |
| Technical Specification - ImageAutomatic | Automatic exposure (AEC), automatic white balance (AWB), automatic gain (AGC) |
| Technical Specification - Audio | G.711A/G.711U/G.726 |
| StorageType | Video/Picture |
| NetworkProtocol | TCP/IP、UDP、RTP、RTSP、RTCP 、HTTP、DNS、DDNS、DHCP、 FTP、NTP、PPPOE、SMTP、UPNP |
| ONVIFProtocol | Supports PROFILE S and can be connected to mainstream brand NVRs |
| Technical Specification | Support IE6.0 or above, Firefox, Google |
| Technical Specification - Line | Supports up to 5 users |
| MountingMethod | Bracket installation |
| Operating Ambient Temperature | 16℃ |
| Power Consumption | <12W |
| Dimensions | L335×W189×H107 mm |
| Weight | <2500g |
