IRG Series Germanium Windows
IRG Series Germanium Windows are high-performance optical components designed for infrared applications. They offer excellent transmission in the infrared spectrum and are ideal for thermal imaging and spectroscopy.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Material | Germanium |
| Diameter Range | 10mm-100mm |
| Thickness Range | 0.5mm-10mm |
| Surface Quality | 40/20 |

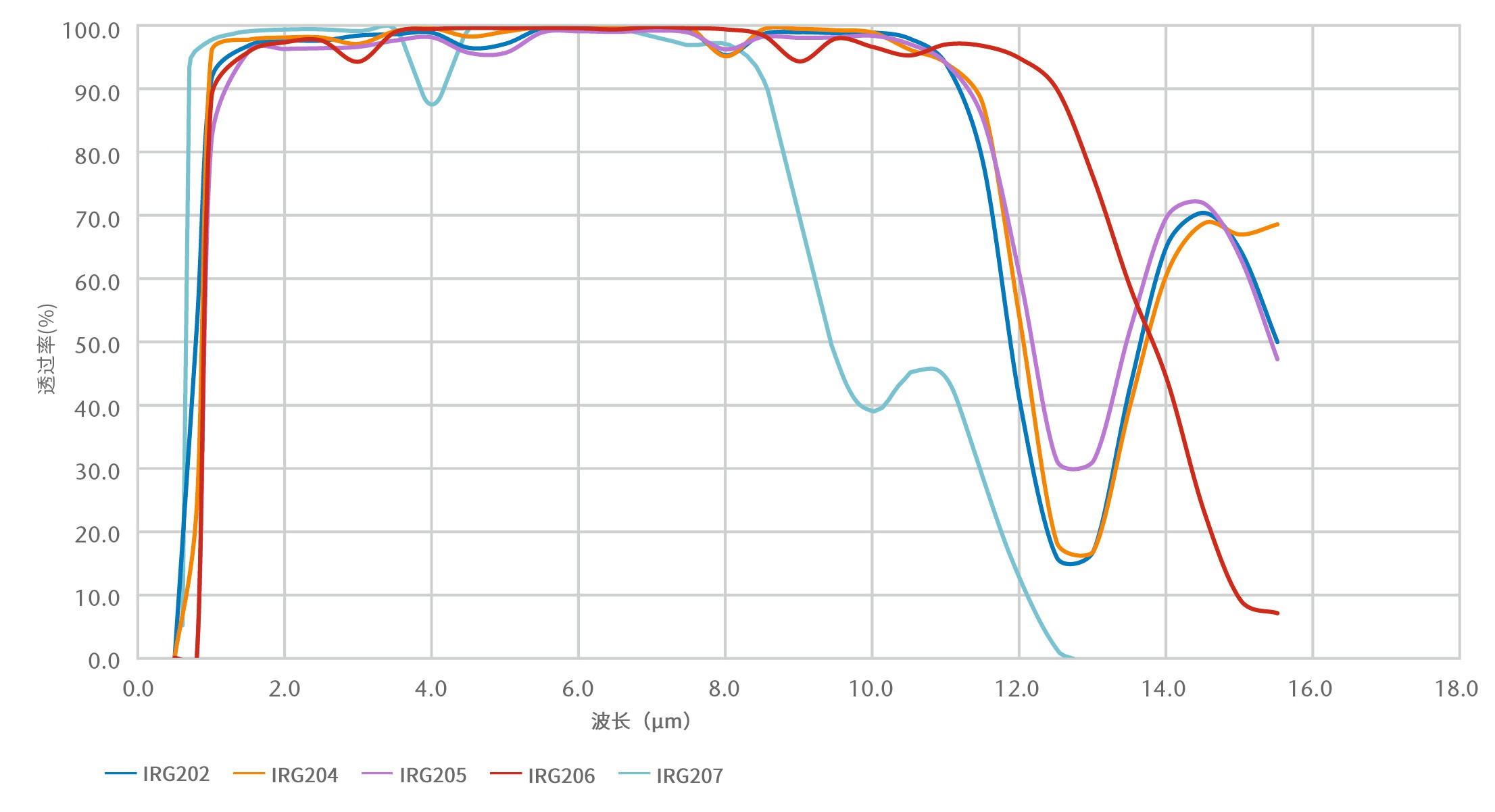

| Transmittance | >90% (2-14μm) |
| Refractive Index | 4.0 (at 10.6μm) |
| Operating Temperature | -50°C to +80°C |
| Coating Type | AR Coating (2-14μm) |
