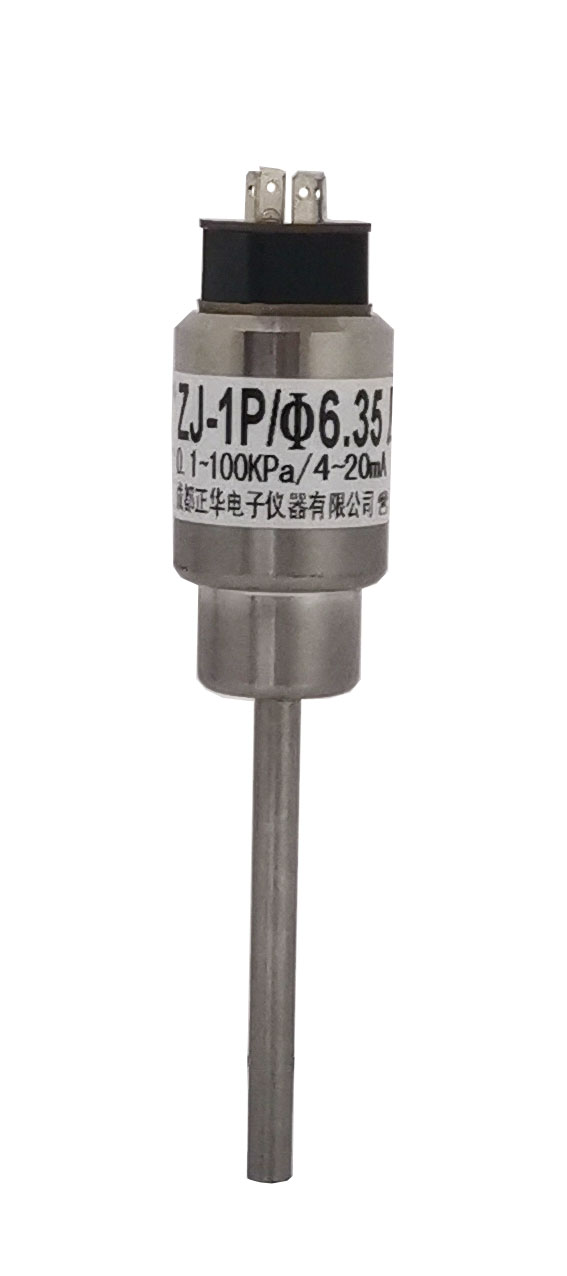

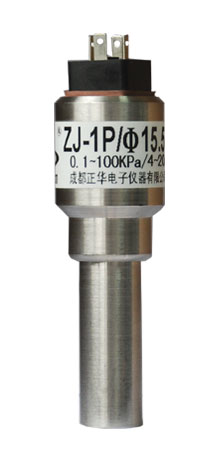

ZJ-1P Series Absolute Pressure Transmitter
The ZJ-1P series absolute pressure transmitter is designed for precise pressure measurement in various industrial applications. It features high accuracy, stability, and a robust stainless steel construction.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Range | 0-1000T |
| Output | 1-5VDCVDC |
| Input | +12-30VDCVDC |
| Serial Number | 20190515 |
Applications
Key Features
Datasheet
Supplier Information
Related Products
-
Low-conductivity electromagnetic flowmeter
Sensors
Hikmicrotech
Connection Method: Flange, clamp-on, and triclamp optional Accuracy: Class 0.5 Aperture: DN10~DN600 (for other diameters, please contact us for customization)
-
Differential pressure transmitter
Sensors
Hikmicrotech
Accuracy class: A：0.05%，B：0.075%，C：0.1% Range: B：0-200Pa~6kPa；C：0-400Pa~40kPa；D：0-2.5kPa~250kPa；E：0-10kPa~1MPa；F：0-30kPa~3MPa Output: 1：4-20mA HART，2：RS485/RTU-Modbus
The differential-pressure transmitter measures level, density, pressure and flow of liquids, gases or steam and converts the measurement into a 4–20mA DC HART current output.
-
Differential pressure mounted gauge/absolute pressure transmitter
Sensors
Hikmicrotech
Accuracy class: A：0.05%，B：0.075%，C：0.1% Range - gauge pressure: B：0-0.6kPa~6kPa，C：0-2kPa~40kPa，D：0-2.5kPa~250kPa，E：0-10kPa~1MPa，F：0-30kPa~3MPa，G：0-0.1MPa~10MPa，H：0-0.21MPa~21MPa，I：0-0.4MPa~40MPa，J：0-0.6MPa~60MPa Range - absolute pressure: 1：4-20mA HART，2：RS485/RTU-Modbus
The differential-pressure-mounting gauge/absolute-pressure transmitter measures level, density and pressure of liquids, gases or steam and converts the measurement into a 4–20mADC HART current output.
-
Differential-pressure Level Transmitter
Sensors
Hikmicrotech
Accuracy class: B：0.075%，C：0.1% Range: B：0-2Kpa~6Kpa；C：0-4Kpa~40Kpa；D：0-2.5Kpa~250Kpa；E：0-10Kpa~1Mpa；F：0-30Kpa~3Mpa Output: 1：4-20mA HART，2：RS485/RTU-Modbus
The diaphragm capsule of the differential pressure level transmitter is used to prevent the medium in the pipeline from directly entering the pressure sensor assembly of the differential pressure transmitter; silicone oil and other fill fluids are used between it and the transmitter to transmit pressure.
-
Differential pressure remote transmission transmitter
Sensors
Hikmicrotech
Accuracy class: B：0.075%，C：0.1% Range: B：0-2kPa~6kPa；C：0-4kPa~40kPa；D：0-2.5kPa~250kPa；E：0-10kPa~1MPa；F：0-30kPa~3MPa Output: 1：4-20mA HART，2：RS485/RTU-Modbus
The diaphragm capsule of the remote-seal differential-pressure transmitter or dual-threaded remote-seal version prevents process media from directly entering the pressure-sensor assembly.
