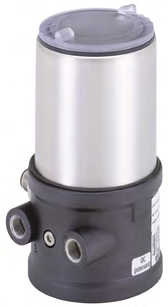

Type 8695 Control Head
The Type 8695 control head is designed for decentralized automation of ELEMENT process valves, offering contact-free inductive valve position registration, illuminated status display, and integrated pilot air duct. It is suitable for hygienic environments in industries such as food, beverage, and pharmaceuticals.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Body Material | PPS |
| Body Material | stainless steel |
| Seal Material | EPDM |
| Cover material | PC |
| Operating Keys | 2 |
| Service Interface | Connected to PC via USB connection |
| Configuration Tool | Burkert Communicator |
| Status Display | Multicoloured LEDs |
| Communication | AS-Interface, IO-Link, Bürkert system bus (büS) |
| Position Sensor | Inductive (contactless) with self-adjusting switching points |
| Stroke Range for Linear Actuator | 2.5...32mm |
| Electrical Connection | Circular plug M12 |
| Control Medium | Neutral gases, air, quality class according to ISO8573-1 |
| Dust Content | Class 7 (<40μm particle size) |
| Particle Density | Class 5 (<10mg/m³) |
| Pressure Dew Point | Class 3 (<-20°C) |
| Oil Content | Class X (<25mg/m³) |
| Supply Pressure | 0.7...7bar |
| Pilot Air Port | Threaded connection G1/4, stainless steel |
| Electrical Data - Operating Voltage | 24V DC ±25% |
| Electrical Data - Power Consumption | 2W or 5W at maximum load on one active digital output |
| Electrical Data - Protection Class | III according to DIN EN61140 |
| Electrical Data - Outputs | Max. 100mA per output |
| Ambient Temperature Range | -10...55°C (with pilot valve), -20...60°C (without pilot valve) |
| Degree of Protection | IP65/IP67 according to EN60529, 4X according to NEMA250 Standard |
| Installation Position | As required |
| Installation Position | preferably with actuator in upright position |
| Installation Altitude | Up to 2000m above sea level |
| Electrical Connection - M12 Plug | 8-pin, 4-pin, 5-pin |
| Communication Protocol | AS-Interface, IO-Link, Bürkert system bus (büS) |
