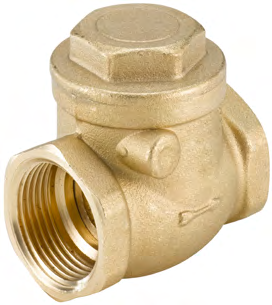

Type TFU005 Non-return flap for water
The Type TFU005 is a non-return flap designed for water applications, featuring a brass housing and metal seal. It is suitable for horizontal installation and requires a pressure difference of 0.1 bar to open the valve.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Dimensions | Refer to ordering chart |
| Material | Metal |
| Seal | Metal |
| Body | CW 617 N |
| Disc | CW 617 N |
| Nominal Diameter | DN 15...50mm |
| Pressure | Max. 10bar@20°C |
| Opening Pressure | Differential pressure >0.1bar |
| Medium Temperature | Max. 110°C |
| Installation Position | Horizontal |
