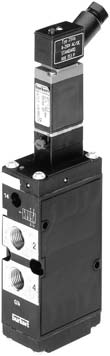

6516/6517 EEXi Pilot-Operated Solenoid Valve
The 6516/6517 EEXi solenoid valves are designed for process actuation in hazardous areas. With an intrinsically safe design and block mounting capability, they are suitable for demanding applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Nominal Voltage | 24VDC |
| Duty Cycle | 100% continuously rated |
| Protection Class | IP65 with cable plug |
| Materials - Body | PA |
| Materials - Threaded Port Material | Brass or stainless steel |
| Materials - Seal | PB (NBR and PUR) |
| Fluids | Lubricated or unlubricated compressed air |
| Fluids | instrument air |
| Fluids | nitrogen |
| Ambient Temperature - Block Assembly | -10°C to +60°C (T6) |
| Ambient Temperature - Single Mounting | -10°C to +55°C (T6) |
| Mounting Position | Preferably solenoid system upright |
| Circuit Function | C (3/2-way), D (3/2-way), H (5/2-way) |
| Orifice | 8mm |
| Qn-Value | 1300l/min |
| Pressure Range | 2–8bar |
| Response Time - Opening | 35ms |
| Response Time - Closing | 120ms |
| Weight | 200g |
| Dimensions | Refer to technical drawing |
