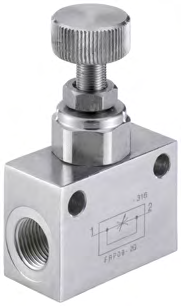

Type TRG001
The Type TRG001 is a versatile flow restrictor, control valve, and shuttle valve designed for regulating compressed air supply to consumers. It offers reliable performance and is suitable for various pneumatic applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Material | Nickel-plated brass, Stainless steel AISI 316/1.4401, PBT, Aluminium |
| Seal O-ring | NBR |
| Seal O-ring | FKM |
| Nominal Pressure | Max.10bar |
| Operating Medium | Air |
| Operating Medium | neutral gases |
| Operating Medium | liquids |
| Medium Temperature (Nickel-plated brass variant) | -10...+70°C |
| Medium Temperature (Stainless steel variant) | -10...+120°C |
| Medium Temperature (Aluminium variant) | -10...+70°C |
| Fluidic Connection | G1/8, G1/4, G3/8, G1/2, M5 |
| Flow Rate Qn Value Air | 200l/min |
| Pressure Range | 2...10bar |
