7615型定量添加隔膜泵

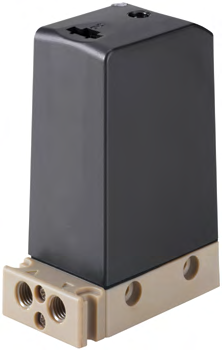

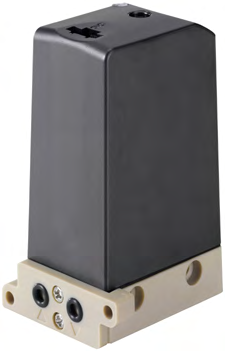

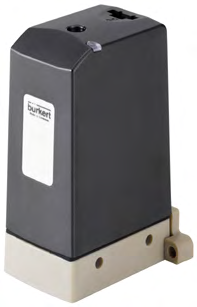

The Bürkert Type 7615 is a precise micro-dosing diaphragm pump designed for high chemical resistance. It is suitable for applications requiring accurate micro-dosing in the range of 5 µl/stroke to a maximum of 8 ml/min with dual flow. The pump is compact, self-priming, and features an integrated electronic circuit for easy operation.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Dimensions | Refer to page 5 |
| Materials | FFKM |
| Materials | EPDM |
| Materials | PEEK |
| Materials | PPS |
| Diaphragm | FFKM, EPDM (optional) |
| Valve Body | PEEK |
| Valve seat | PPS (non-filled) |
| Weight | Approx. 120g |
| Switching life | ≥200 million switching cycles (at +20°C, 10Hz, water) |
| Dosing Accuracy | ±3.5% |
| Dosing volume | 5µl/stroke ±1.5%, up to 8ml/min; dual flow |
| Maximum frequency | 40Hz |
| Minimum suction pressure | >0.7m water column |
| Maximum feed pressure | <1.0bar |
| Electrical Voltage | 12/24V DC |
| Power Consumption | 11W (max), 5W |
| Voltage Tolerance | ±10% |
| Medium Temperature | +15°C to +60°C (FFKM), +5°C to +60°C (EPDM) |
| Ambient Temperature | -10°C to +55°C |
| Protection Class | IP40 |
| Installation Position | Any, single unit with M3 mounting screws |
| Pipe connection | UNF 1/4-28 |
| Pin Assignment | Refer to page 6 |
