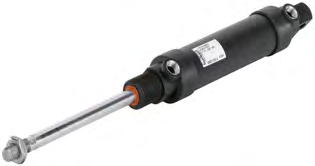

Type 0044/0045 Pneumatic Cylinder
Single-acting and double-acting pneumatic cylinders made of plastic, designed according to ISO standards, offering corrosion resistance and lightweight construction.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Material | NBR with PA6 (optional FKM), P5600 with PA12 |
| Piston Rod | Stainless steel 1.4401 |
| Solenoid Piston | On request |
| Cylinder Tube | PA6 and PA12, both fiberglass-reinforced (optional PP Ø32...50mm) |
| Pressure Range | 1...10bar |
| Operating Medium | Filtered oil-free compressed dry air |
| Medium temperature | -20°C...+70°C |
| Installation Position | As required |
| Ambient Temperature | -20°C...+70°C |
| Piston Diameter DN 12...25 | 12mm, 16mm, 20mm, 25mm |
| Piston Diameter DN 32...50 | 32mm, 40mm, 50mm |
| Stroke DN 12...25 | 25mm, 50mm |
| Stroke DN 32...50 | 50mm, 100mm, 150mm, 200mm, 300mm |
| Extension Force at Operating Pressure DN 12...25 | 7N to 435N |
| Extension Force at Operating Pressure DN 32...50 | 145N to 1770N |
| Minimum Retraction Force DN 12...25 | 6.5N to 18N |
| Minimum Retraction Force DN 32...50 | 84% of extension force |
