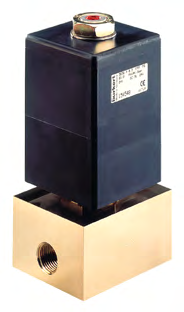

Type 2836 Direct-acting 2-way Solenoid Control Valve
The Type 2836 is a direct-acting proportional solenoid control valve designed for applications requiring high flow rates. It operates as a normally closed valve and is suitable for controlling neutral gases and liquids.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Material | Brass |
| Material | stainless steel |
| Seal Material | FKM |
| Seal Material | EPDM |
| Circuit Function | A |
| Hysteresis | <5% |
| Repeat Accuracy | <1%FS |
| Response Sensitivity | <0.5%FS |
| Setting Range | 1:25 |
| Operating Voltage | 24VDC |
| Power Consumption | 24W |
| Maximum Coil Current | 1100mA |
| PWM Frequency | 180Hz |
| Operating Medium | Neutral gases and liquids |
| Medium Temperature Range | -10°C...+90°C (FKM), -30°C...+90°C (EPDM) |
| Viscosity | Max. 21mm²/s (21cSt) |
| Electrical Connection | Plug contacts according to DIN EN 175301-803 |
| Port Connection | G1/2, G3/4, NPT1/2, NPT3/4 |
| Degree of Protection | IP65 |
| Installation Position | Preferably upright |
| Ambient Temperature | Max. +55°C (+131°F) |
| Orifice | 3mm, 4mm, 6mm, 8mm, 10mm, 12mm |
| Kv value water | 0.25m³/h, 0.40m³/h, 0.90m³/h, 1.5m³/h, 2.0m³/h, 2.5m³/h |
| Nominal Pressure | 25bar, 16bar, 8bar, 5bar, 3bar, 2bar |
| Mass | 4000g (brass), 4600g (stainless steel) |
| Oxygen Suitability | Suitable for gaseous oxygen (variable code NL02) |
