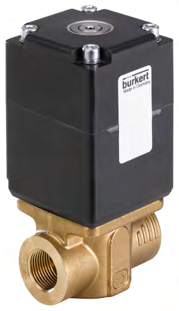

Type 2875 Direct-acting 2-way solenoid control valve
The Type 2875 is a direct-acting solenoid control valve used for regulating control loops. It features an elastomeric seat seal for tight shut-off and frictionless assembly for precise adjustment. Suitable for demanding control tasks such as high control range and dry gases.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Dimensions | Refer to section 5 |
| Material | Brass |
| Material | stainless steel |
| Seal | FKM |
| Seal | EPDM |
| Circuit Function | A |
| Hysteresis | <5% |
| Repeat Accuracy | <0.5% FS |
| Response Sensitivity | <0.25% FS |
| Setting Range | 1:200 |
| Actuating Time (10...90%) | <25ms |
| Duty Cycle | 100% continuous operation |
| Operating Voltage | 24VDC (12V on request) |
| Power Consumption | 16W |
| Maximum Coil Current | 750mA (at 16W and 24V coil) |
| PWM Frequency | 900Hz |
| Operating Medium | Neutral gases |
| Operating Medium | liquids on request |
| Medium Temperature | Refer to section 6 |
| Viscosity | Max. 21mm²/s (21cSt) |
| Electrical Connection | Cable plug Type 2518, form A according to DIN EN 175301-803 |
| Port Connection Size | Sub-base, G⅜, G½, NPT⅜, NPT½ |
| Degree of Protection | IP65 |
| Explosion Protection | Optional ATEX/IECEx |
| Installation Position | As required |
| Installation Position | preferably with actuator upright |
| Ambient Temperature | Max. +55°C |
| Flow Coefficient | Refer to section 6 |
| Standard Flow Rate | Refer to section 6 |
| Inlet Pressure | Refer to section 6 |
| Outlet Pressure | Refer to section 6 |
| Differential Pressure | Refer to section 6 |
| Density | Refer to section 6 |
| Standard Density | Refer to section 6 |
