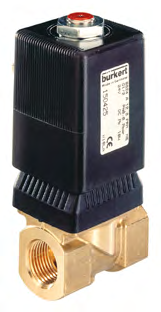

Type 6024 Direct-acting 2-way Solenoid Control Valve
The Type 6024 is a direct-acting proportional solenoid valve designed for high flow rates at low inlet pressures. It is normally closed and operates efficiently under low differential pressures.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Dimensions | Refer to dimensions section |
| Material | Brass |
| Material | stainless steel |
| Seal | FKM |
| Seal | others on request |
| Circuit Function | A |
| Hysteresis | <7% |
| Repeat Accuracy | <0.5% FS |
| Response Sensitivity | <0.5% FS |
| Setting Range | 1:25 |
| K Value | 1.4–2.8m³/h |
| Pressure Range | 0.1–0.7bar (depending on DN) |
| Duty Cycle | 100% continuous operation |
| Operating Voltage | 24V DC (12V on request) |
| Power Consumption | 16W |
| Maximum Coil Current | 620mA |
| PWM Frequency | 280Hz |
| Operating Medium | Neutral gases and liquids |
| Medium Temperature | -10°C to +90°C |
| Viscosity | Max. 21mm²/s (21cSt) |
| Product Connections | Plug contacts according to DIN EN 175301-803 form A |
| Port Connection | G½, G¾ (NPT½ and NPT¾ on request) |
| Degree of Protection | IP65 |
| Installation Position | As required |
| Installation Position | preferably with actuator upright |
| Ambient Temperature | Max. +55°C |
