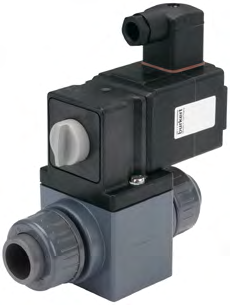

Type 0131 Direct-acting 2/2-way or 3/2-way Toggle Valve
The Type 0131 is a direct-acting toggle valve designed for controlling aggressive media such as acids and alkaline solutions. It features a diaphragm separation between the actuator and valve body, ensuring safe operation. The valve is available in various seal material combinations and is suitable for applications in drinking water systems and railway vehicles.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Seal Material | NBR |
| Seal Material | EPDM |
| Seal Material | FKM |
| Body Material | PVC |
| Body Material | brass |
| Coil Material | Epoxy |
| Valve Inner Parts | Refer to 'Materials' section |
| Orifice | DN10...DN20 |
| Circuit Function | A |
| Circuit Function | B |
| Circuit Function | C |
| Circuit Function | D |
| Circuit Function | E |
| Circuit Function | F |
| Thermal insulation class of solenoid coil | Epoxy coil class H |
| Duty Cycle | 100% continuous operation |
| Switching Frequency | 60/min with AC, Max. 6/min with UC |
| Switching Time | Opening: 10...20ms, Closing: 40...60ms |
| Operating Voltage | 24VUC, 230VUC, 24V50Hz, 230V50Hz (other voltages on request) |
| Power Consumption (Inrush) | AC: 100...120VA, UC: 100W |
| Power Consumption (Hold) | AC: 48VA/16W, UC: 9W |
| Voltage Tolerance | ±10% |
| Operating Medium | Aggressive and non-aggressive liquids, neutral gases, aggressive gases according to their diffusion properties |
| Medium Temperature (Body + Seal) | With PVC/EPDM: -10°C...+50°C, With PVC/FKM: -10°C...+50°C, With Brass/EPDM: -30°C...+90°C, With Brass/FKM: -10°C...+130°C, With Brass/NBR: -10°C...+90°C |
| Viscosity | Max. 37mm²/s |
| Degree of Protection | IP65 with cable plug |
| Installation Position | Any |
| Installation Position | preferably actuator face up |
| Ambient Temperature | Max. +50°C |
| Max. System Pressure in Flow Direction | 8bar (switching pressure max. 3bar depending on orifice) |
