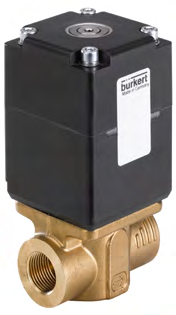

Type 2865 Direct-acting 2-way Basic Proportional Valve
The Type 2865 is an extremely compact solenoid control valve with an orifice size of up to 8 mm. It is based on the standard variant of Type 2875 and is used as an actuator in closed control loops for pressure, flow, and temperature applications. The valve features a simplified construction and optimized testing procedures, making it ideal for high-volume series production with shorter delivery times.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Dimensions | Refer to chapter 5 |
| Material | Brass |
| Material | stainless steel |
| Seal | FKM |
| Seal | EPDM |
| Circuit Function | A |
| Hysteresis | <5% |
| Repeat Accuracy | <1% FS |
| Response Sensitivity | <1% FS |
| Setting Range | 1:25 |
| Actuating Time (10...90%) | <25ms |
| Duty Cycle | 100% continuous operation |
| Operating Voltage | 24VDC (12V on request) |
| Power Consumption | Max. 16W |
| Maximum Coil Current | 750mA (at 16W and 24V coil) |
| PWM Frequency | 280Hz |
| Medium | Neutral gases |
| Medium | liquids on request |
| Medium Temperature | -10°C...+90°C (with FKM), -30°C...+90°C (with EPDM) |
| Viscosity | Max. 21mm²/s (21cSt) |
| Electrical Connection | Plug contacts according to DIN EN 175301-803 form A for cable plug Type 2518 |
| Port Connection Size | G3/8, G1/4, NPT3/8, NPT1/2 |
| Degree of Protection | IP65 |
| Explosion Protection | Optional, refer to chapter 3.4 |
| Installation Position | As required |
| Installation Position | preferably with actuator upright |
| Ambient Temperature | Max. +55°C |
| Kv Value for Liquids | 0.12-1.10m³/h |
| Kv Value for Gases | 0.12-1.10m³/h |
| Flow Characteristic | Refer to chapter 6.1 |
| Control Unit | PWM signal (pulse-width modulation) |
