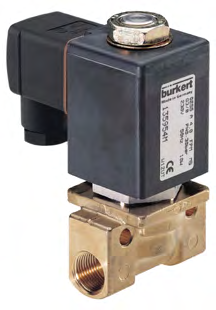

0255 Type Solenoid Valve
The 0255 Type solenoid valve is a direct-acting two-way plunger valve designed for high-pressure and high-temperature environments.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Dimensions | DN1.0至DN6.0 |
| Material | FKM |
| Material | PTFE |
| Material | Stainless Steel |
| Coil Insulation Class | H级 |
| Duty Cycle | 连续运行100%ED |
| Switching Time (DC) | 打开:10ms至20ms,Close:20ms至80ms |
| Switching Time (AC) | 打开:10ms至20ms,Close:20ms至30ms |
| Operating Voltage | 24VDC,24V/50Hz,110V/50Hz,230V/50Hz |
| Medium | 热油,热盐,含添加剂的油,过氧化物液体,水,蒸汽,燃料,酸,酶,有机溶剂,腐蚀性液体 |
| Medium Temperature Range | -10°C至+130°C (可按需提供) |
| Ambient Temperature | 最高+55°C |
| Maximum Viscosity | 最大21mm²/s (21cSt) |
| Connection Type | G1/4,G3/8,G1/2,NPT1/4,NPT1/2 |
| Certifications and Compliance | IP65,IP50,UL429,CAN/CSA-C22.2No.139 |
| High-Temperature Version Temperature Range | 至+210°C |
| High-Temperature Version Power | CF42:冷态功率6W,热态功率13W;CF09:冷态功率10W,热态功率7W |
