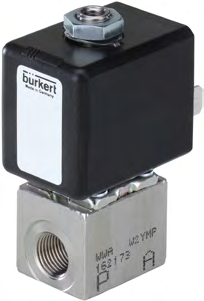

7012 Type Direct-acting 2/2 or 3/2-way plunger valve
The Bürkert 7012 Type is a compact direct-acting plunger valve designed for applications requiring high pressure and safety. It is available in various configurations, including standard, Banjo, and ATEX/IECEx versions, to suit different industrial needs.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Dimensions | Refer to page 10 |
| Materials | FKM |
| Materials | EPDM |
| Valve Body | Brass (PA), Polyphenylene Sulfide (PPS), Stainless Steel 1.4305/303 |
| Manual Override | 7012 Banjo version optional |
| Standard Version Weight | 146g (G 1/8) |
| 20mm Cable Connector Weight | 120g (G 1/8) |
| Banjo Version Weight | 135g |
| Nominal Diameter | DN1.2-DN2.0 |
| Circuit Function | Refer to page 5 |
| Coil Insulation Class | Class H |
| Coil Size | 24.5mm, 20mm |
| Connection Type | M5, G 1/8, NPT 1/8, Sub-base connection |
| Operating Pressure | 0-34bar (depending on orifice and coil combination) |
| Operating Medium | Neutral gases and liquids (e.g., compressed air, water, hydraulic oil, technical vacuum) |
| Ambient Temperature | -10°C to +100°C (Standard), -10°C to +60°C (Banjo version) |
| Medium Temperature | -10°C to +100°C (FKM), -30°C to +100°C (EPDM) |
| Maximum Flow Rate | 21mm²/s |
| Electrical Connection | DIN EN 175301-803 C type, 2507 type industrial standard B type |
| Protection Class | IP65, with cable plug |
| Certifications and Compliance | ATEX/IECEx, FDA, USP, UBA, UL429, CAN/CSA-C22.2 No.139 |
| Switching Time | Opening: 8-12ms, Closing: 8-12ms |
| Voltage | 24V DC, 24V 50Hz, 110V 50Hz, 230V 50Hz |
| Power Consumption | 5W, 5.5W, 6W, 7W |
| Circuit Function Description | Refer to page 5 |
