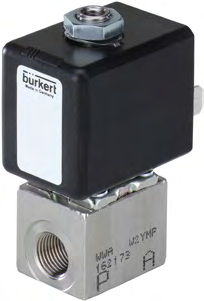

7012 Type Direct-acting Two-position Three-way Solenoid Valve
The 7012 valve is a direct-acting solenoid valve designed for compact applications. It ensures safety by preventing pressure and media leakage. It is available in various configurations, including standard, Banjo, and ATEX/IECEx versions, suitable for different industrial needs.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Dimensions | 24.5mm, 20mm |
| Material | FKM, EPDM, PA, PPS, Stainless Steel 1.4305/303 |
| Coil Weight | 146g (G1/8), 120g (M5), 135g (Banjo version) |
| Nominal Diameter | DN1.2-DN2.0 |
| Circuit Function | WWC |
| Circuit Function | WWD |
| Ambient Temperature | -10°C to +55°C |
| Media temperature | -10°C to +100°C |
| Operating Pressure | 0-13bar |
| Voltage | 24V DC, 24V AC, 230V AC |
| Power | 4W, 5.5W, 7W |
| Connection Type | M5, G1/8, NPT1/8 |
| Certification | ATEX |
| Certification | IECEx |
| Certification | FDA |
| Certification | USP |
| Certification | UL |
| Protection Class | IP65 |
| Flow Rate | 0.045m³/h, 0.060m³/h, 0.110m³/h |
