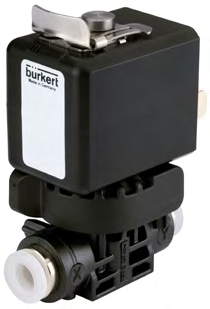

7015 Type Direct-acting 2/2-way Solenoid Valve
The 7015 Type is a direct-acting 2/2-way solenoid valve designed for dosing and precise addition of neutral liquid and gaseous media. It features a compact design, high safety, and reliability, making it suitable for various applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Dimensions | Refer to page 8 |
| Material | FKM |
| Material | EPDM |
| Sealing Material | FKM/EPDM |
| Valve Body | PPS (Polyphenylene Sulfide) |
| Push-in Version | 115g |

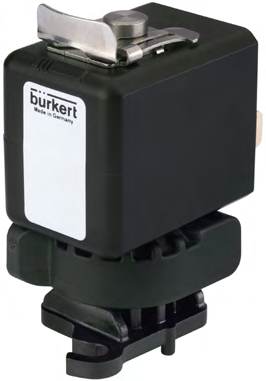

| Flange Version | 110g |
| Nominal Diameter | DN1.6-DN2.7 |
| Circuit Function | A |
| Insulation class of solenoid coil | Class H |
| Duty Cycle | 100% ED (ambient temperature ≤65°C) |
| Switching Time | Open: 8-15ms, Close: 15-20ms |
| Operating Voltage | 24V DC |
| Power | 7W |
| Electrical Parameters - Cold Power | 5.5W |
| Electrical Parameters - Hot Power | 7W |
| Operating Medium | Neutral liquid and gaseous media (e.g., air, water, coffee, tea) |
| Medium Temperature | +5°C to +100°C |
| Medium Temperature - Special | -10°C to +145°C |
| Ambient Temperature | Max. +65°C |
| Connection Type | Screw connection (6.3x0.8) as Class III protective low-voltage equipment |
| Pipeline Interface | Flange version (pipe outer diameter 6mm), Push-in version (pipe outer diameter 4mm) |
| Protection Class | IP20 |
| North America (USA/Canada) | UL 429, CAN/CSA-C22.2 No.139 |
| Food and Beverage/Hygiene | NSF/ANSI 169, FDA, USP, EC Regulation 1935/2004 |
| Installation Position | Any |
| Installation Position | preferably actuator upwards |
| Standard Version with Flat Plug Wiring, Coil Size 24.5mm | Yes |
| Mode of Action | WW A |
| Pipeline Interface 1.6mm | Qn Value (Air): 70l/min, Kv Value (Water): 0.065m³/h, Voltage/Frequency: 24V/DC/7W, Medium Pressure: 14bar, Sealing Material: FKM |
| Pipeline Interface 2.0mm | Qn Value (Air): 108l/min, Kv Value (Water): 0.1m³/h, Voltage/Frequency: 24V/DC/7W, Medium Pressure: 10bar, Sealing Material: FKM |
| Pipeline Interface 2.7mm | Qn Value (Air): 168l/min, Kv Value (Water): 0.155m³/h, Voltage/Frequency: 24V/DC/7W, Medium Pressure: 10bar, Sealing Material: FKM |

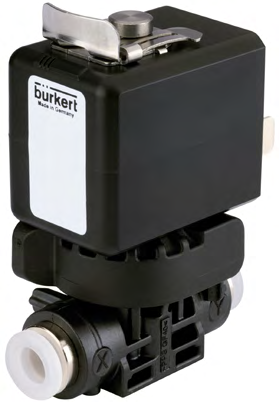

| Push-in Interface 6/4mm | Qn Value (Air): 97l/min, Kv Value (Water): 0.09m³/h, Voltage/Frequency: 24V/DC/7W, Medium Pressure: 14bar, Sealing Material: FKM |
| Push-in Interface 4/2mm | Qn Value (Air): 49l/min, Kv Value (Water): 0.045m³/h, Voltage/Frequency: 24V/DC/7W, Medium Pressure: 14bar, Sealing Material: FKM |
