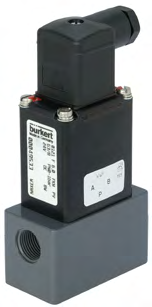

0121型电磁阀

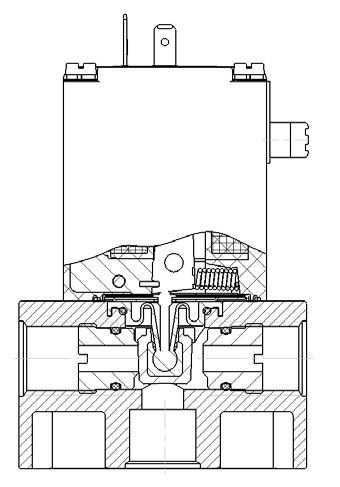

The 0121 solenoid valve is a direct-acting, medium-separated valve available in 2/2-way and 3/2-way versions. It is suitable for neutral and aggressive fluids, making it ideal for applications involving acids, alkalis, and other chemical solutions.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Sealing Material | FKM |
| Sealing Material | FFKM |
| Sealing Material | EPDM |
| Valve Body | PVC (DIN 8062, 8061 standard), PTFE, 1.4401 stainless steel |
| Material Properties | Refer to Burkert resistApp |
| Standard Version Weight | 0.9kg (stainless steel), 0.38kg (PVC), 0.5kg (PTFE) |
| Explosion-Proof Version Weight | 1.15kg (stainless steel), 0.62kg (PVC), 0.75kg (PTFE) |
| Nominal Diameter | DN2 to DN8 |
| Pressure Range | 0 to 6 bar |
| Electrical Connection Protection Class | IP65 |
| Duty Cycle | 100% ED |
| Switching Time (Standard Version) | AC: Open 20ms, Close 11ms; DC: Open 11ms, Close 8ms |
| Switching Time (Explosion-Proof Version) | DN2 to DN4: Open 30ms, Close 40ms |
| Electrical Data | AC/DC: 40W, 3W |
| Voltage | 24V50Hz, 110V50Hz, 230V50Hz, 120V60Hz, 240V60Hz, 12VDC, 24VDC |
| Voltage Tolerance | ±10% |
| Medium Temperature (Standard Version) | EPDM: -30°C to +90°C; FFKM: -10°C to +90°C; FKM: -10°C to +90°C |
| Medium Temperature (Explosion-Proof Version) | EPDM: -20°C to +90°C; FFKM: -10°C to +90°C; FKM: -10°C to +90°C |
| Ambient Temperature | -10°C to +55°C |
| Kv Value (Water) | 0.1 to 1.0m³/h |
| Connection Type | Threaded connection, DIN EN 175301-803 A |
| Certifications | ATEX |
| Certifications | IECEx |
| Certifications | UL |
| Certifications | CSA |
| Certifications | FM |
| Protection Class | IP65 |
| Maximum Viscosity | 37mm²/s |
