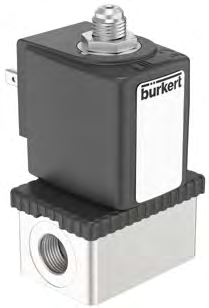

6014 Type Solenoid Valve
The 6014 Type Solenoid Valve is a direct-acting 2/2 or 3/2-way plunger valve designed for high performance in fluid control systems. It features a compact design, anti-vibration coil system, and is suitable for various industrial applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Material | FKM (standard seal), EPDM (optional) |
| Nominal Diameter | DN1.5-2.5 |
| Electrical Connection | DIN EN 175301-803 A type |
| Protection Class | IP65 with 2518 connector, NEMA 4X with 2509 connector |
| Operating Voltage | 24VDC, 24V50Hz, 24V60Hz, 110V50Hz, 110V60Hz, 230V50Hz, 240V60Hz |
| Power Consumption | 5W (100% ED), 8W (60% ED) |
| Operating Pressure | 0-16bar (varies by configuration) |
| Operating Temperature Range | -10°C to +100°C (PA version), -10°C to +120°C (PTFE version) |
| Ambient Temperature | Max. +55°C |
| Pipe connection | G1/8, G1/4, NPT1/8, NPT1/4 |
| Flow Coefficient (Kv) | 0.07-0.16m³/h |
| Response Time | 10-22ms |
| Certifications | ATEX/IECEx, FDA, USP, DNV GL, UL, CSA, FM |
| Explosion Protection | Ex m II T4, Ex ia II T6 |
| Installation Method | Direct mounting or manifold mounting |

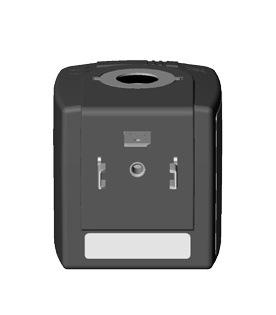

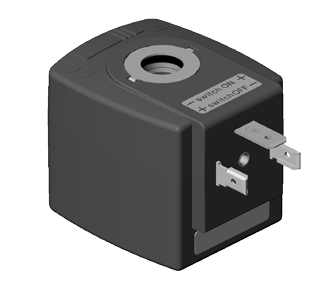

| Coil Size | 5mm, 6mm |
| Special Versions | Banjo version, ATEX/IECEx m version, ATEX/IECEx ia version |
