3285型电动两通直座比例阀

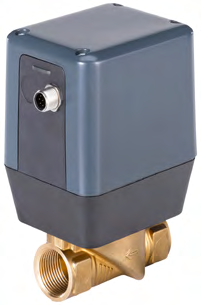

The Burkert Type 3285 is an electric two-way seat proportional valve designed for precise control of liquid and gaseous media. It features a compact design, fast response time, and low power consumption, making it ideal for various industrial applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Dimensions | Refer to page 7 |
| Materials | NBR |
| Materials | EPDM |
| Materials | FKM |
| Valve Body | Brass |
| Valve Body | Stainless Steel |
| Nominal Diameter | DN15 to DN25, NPS ½ to 1 |
| Design Type | On/Off, Control |
| Weight | Approx. 0.8kg to 1.5kg (DN25) |
| Control Characteristics Deviation | ±0.5% |
| Response Time | 4s |
| Operating Pressure Range | 0-6bar(g) |
| Kv Value | 1.8-9.6m³/h |
| Operating Voltage | 24VDC ±10% |
| Maximum Power Consumption | 12W |
| Medium Temperature | -30°C to +70°C |
| Connection Type | G (EN ISO 228-1), NPT (ASME B1.20.1), RC (ISO 7-1) |
| Protection Class | IP50 |
| Ambient Temperature | -10°C to +60°C |

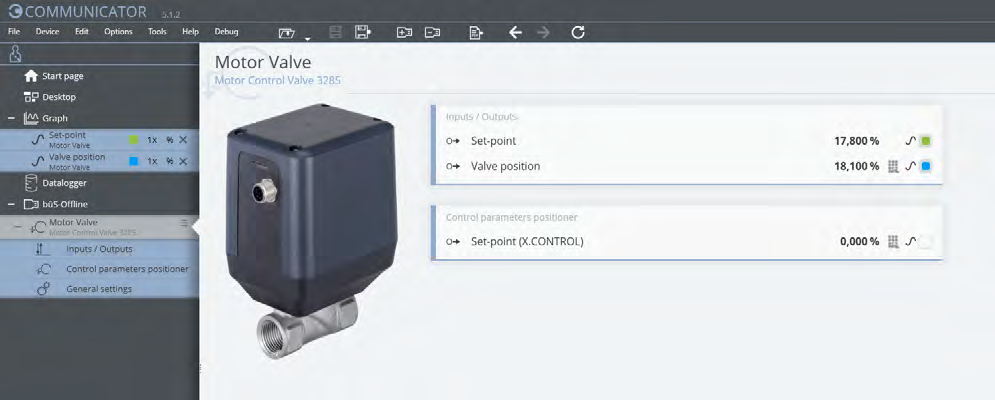

| Communication Interface | büS/CANopen, Burkert Communicator Software |
| Flow Characteristics | Refer to page 11 |
| Load Cycle Limitation Curve | Refer to page 10 |
| Pressure Range | 0-6bar(g) |
| Electrical Control Interface | Refer to page 4 |
| Certification | UL Recognized, CAN/CSA-C22.2 No.139 |
| Applicable Media | Liquid |
| Applicable Media | Gas |
| Applicable Media | Oxygen |
| Applicable Temperature | -30°C to +70°C |
| Applicable Pressure | 0-6bar(g) |
