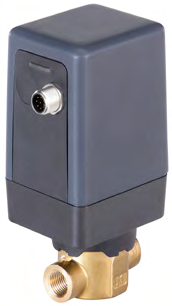

3280 Type Motor Valve
The 3280 Type Motor Valve is an electric two-way proportional valve designed for precise control of liquid and gas flow. It features a compact design, low power consumption, and high-speed response, making it ideal for various industrial applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Nominal Diameter | DN8-DN15, NPS 1/4, 3/8, 1/2 |
| Actuation Type | Direct-acting |
| Design Type | Two-way seat valve |
| Weight | 0.7kg |
| Control Accuracy | ±0.5% |
| Closing Time | 2.5s |
| Pressure Range | 0-6bar(g) |
| Kv Value | 0.03-1.9m³/h |
| Operating Voltage | 24VDC |
| Power Consumption | 8W (DN1 to DN6), 12W (DN8 and DN10) |
| Medium Temperature | -30°C to +70°C (EPDM), 0°C to +70°C (FKM, NBR) |
| Viscosity | Max 600mm²/s |
| Connection Interface | G (EN ISO 228-1), NPT (ASME B1.20.1), Flange |
| Communication Interface | büS/CANopen |
| Ambient Temperature | -10°C to +60°C |
| Protection Class | IP54 |
| Certification | UL Recognized, FDA compliant materials, O₂ suitability |
