Type 6510/6511 Multi-Way Valves for Pneumatics
The Type 6510/6511 multi-way valves are servo-assisted, extendable, and designed for pneumatic applications. These valves are available in 3/2 and 5/2-way versions, offering high reliability and modularity for complex control systems.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|

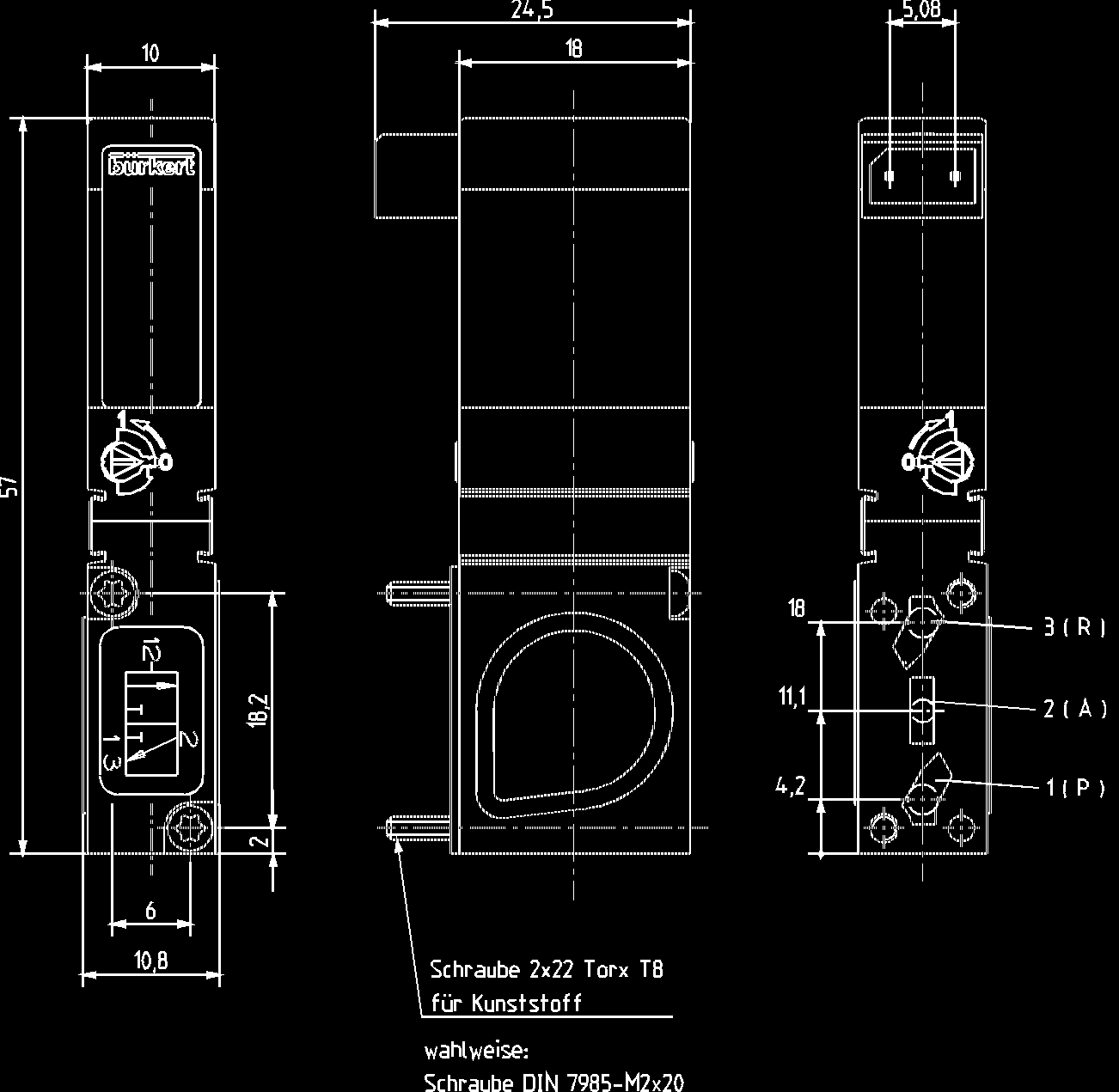

| Circuit Function Type 6510 | C 3/2 way valve, in de-energized position port 2 exhausted |

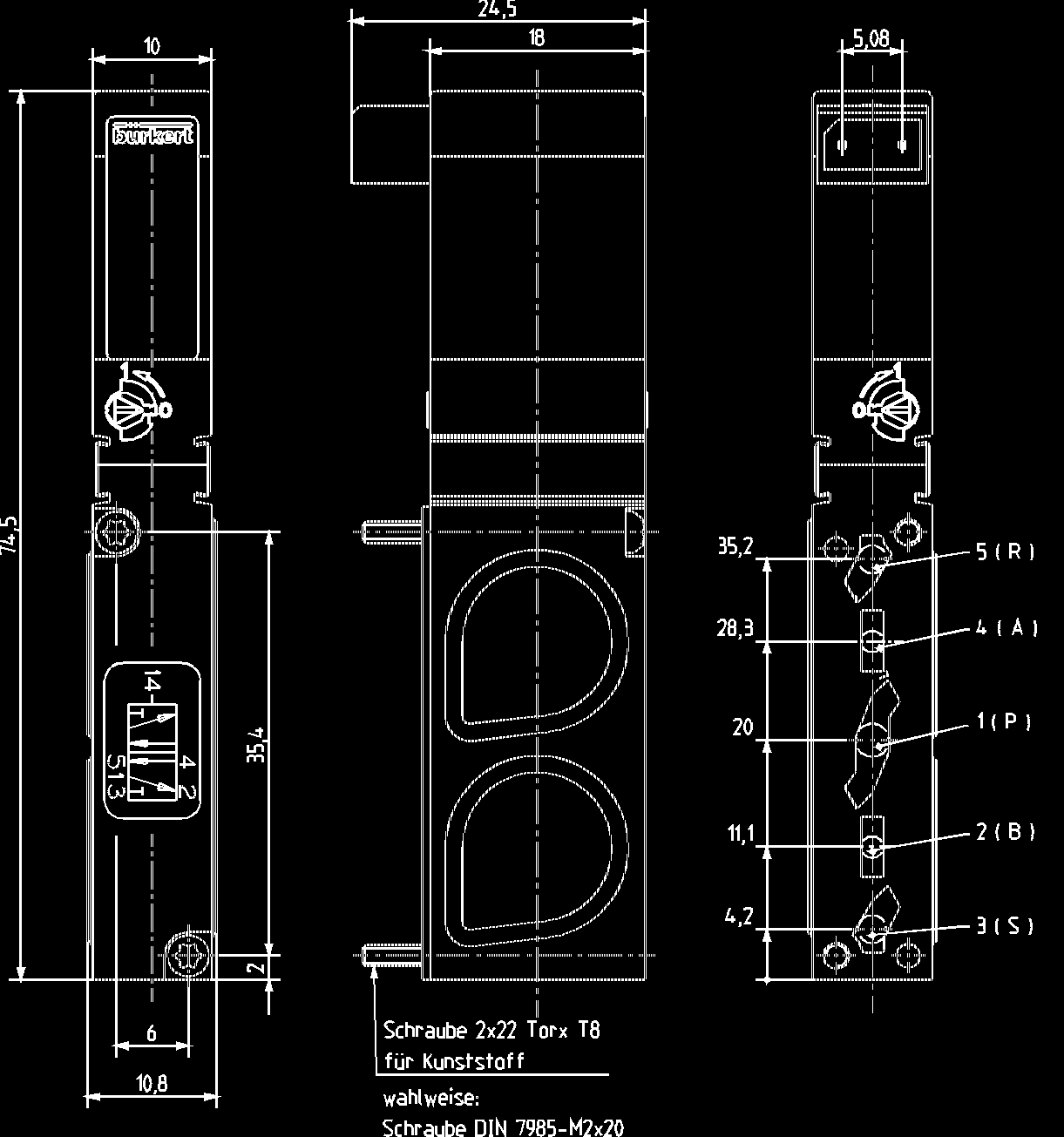

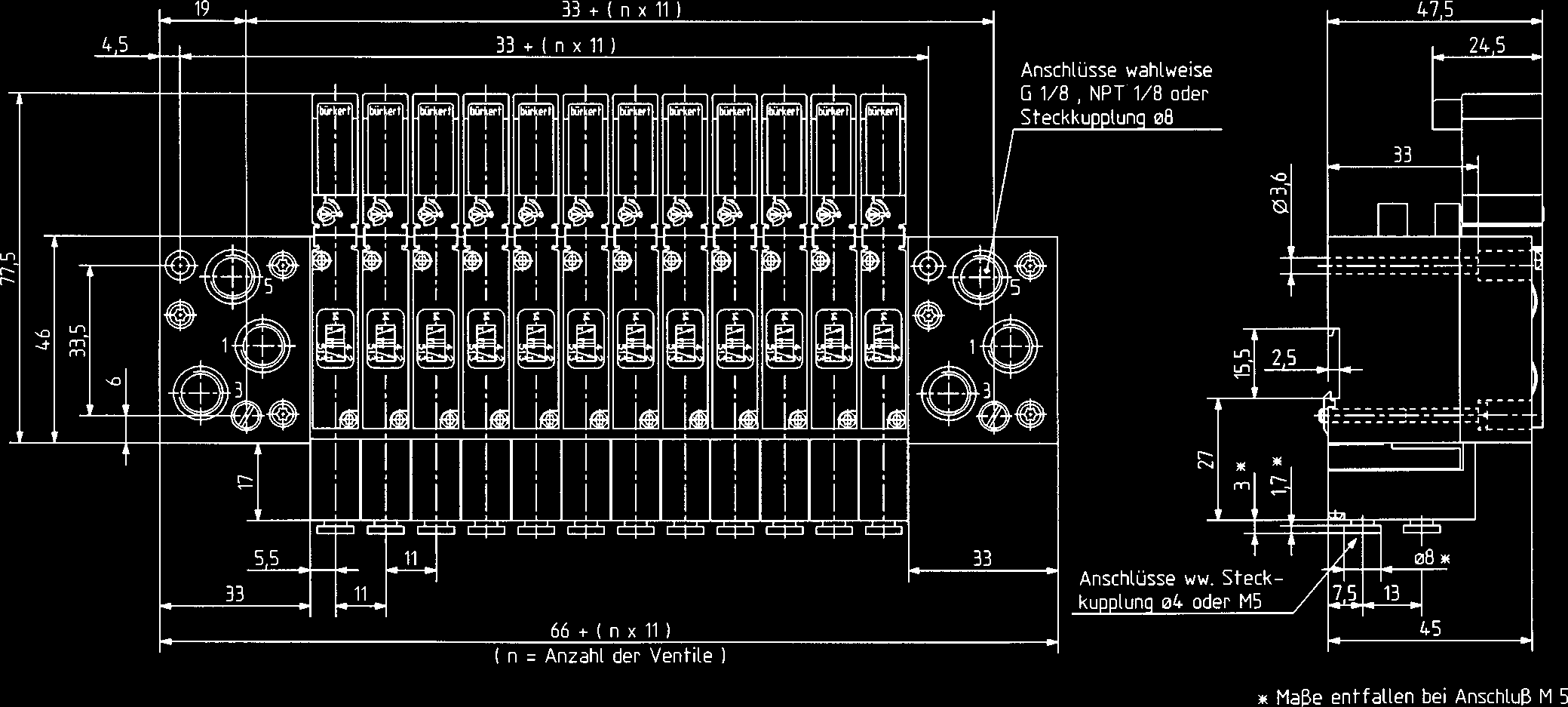

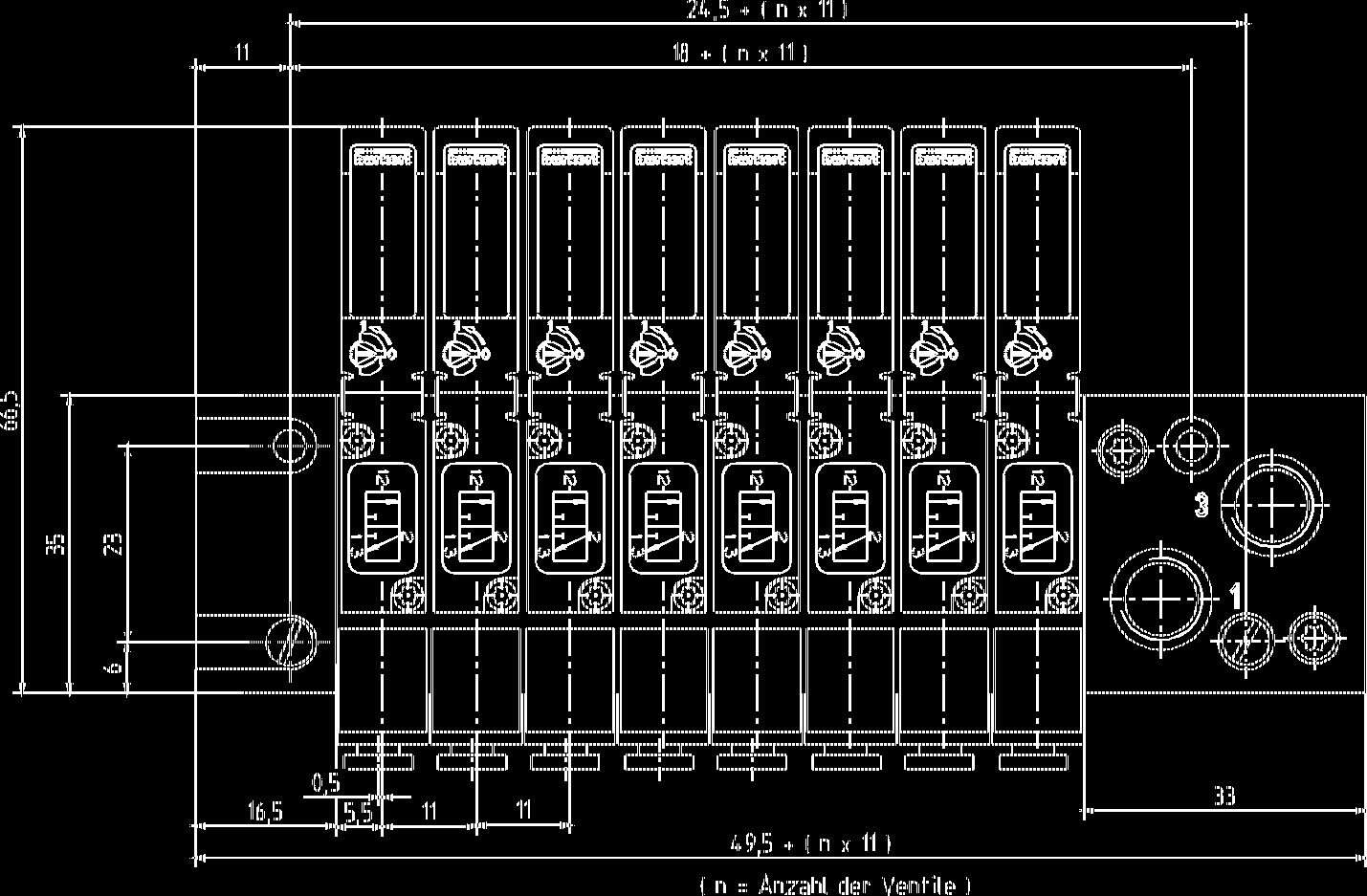

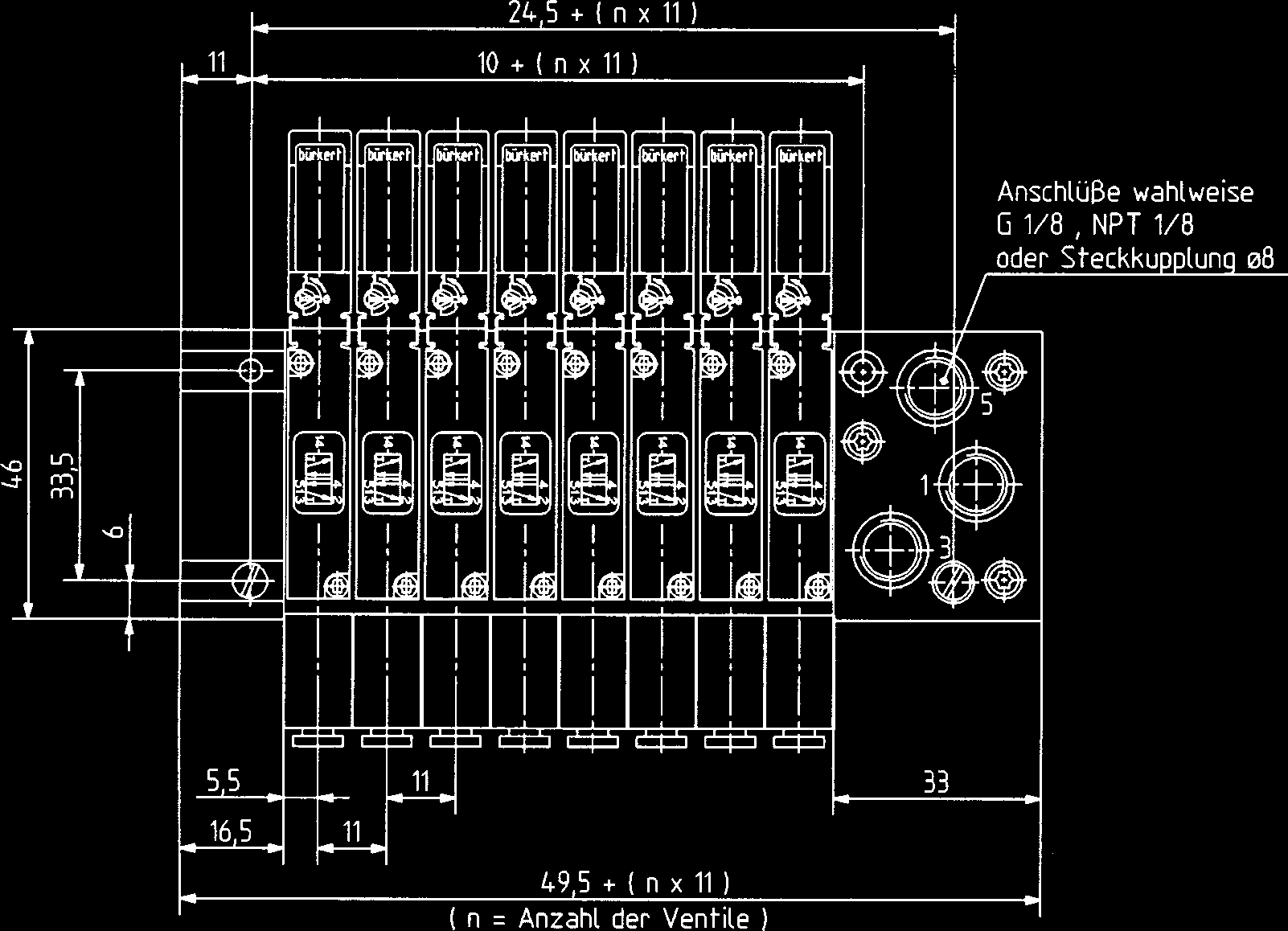

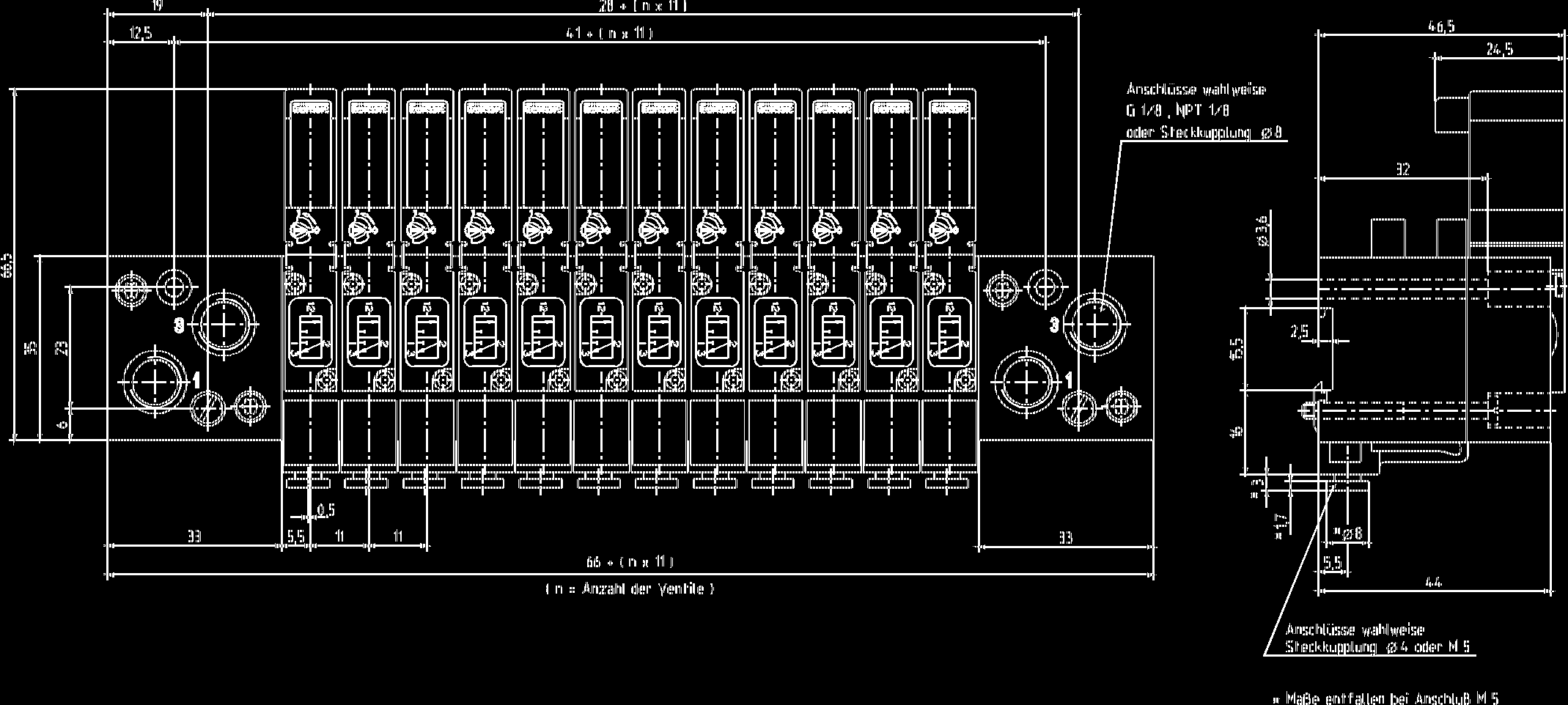

| Circuit Function Type 6511 | H 5/2 way valve, in de-energized position pressure port 1 connected to port 2, port 4 exhausted |
| Orifice (mm) 3/2 | 2.5 |
| Orifice (mm) 5/2 | 2.5 |
| Flow rate QNn-value air (l/min) 3/2 | 130 |
| Flow rate QNn-value air (l/min) 5/2 | 130 |
| Pressure range (bar) 3/2 | 2.5-7 |
| Pressure range (bar) 5/2 | 2.5-7 |
| Valve Body | Polyamide (PA) |
| Sealing Material | FPM and NBR |
| Media | Lubricated or unlubricated compressed air |
| Media | neutral gases |
| Media temperature (°C) | -10 to +50 |
| Ambient temperature (°C) | -10 to +60 |
| Response time Open (On) (ms) | 23 |
| Response time Close (Off) (ms) | 27 |
| Port connections at the valve | Sub base |
| Supply ports | G1/8 or plug-in coupling Ø8mm |
| Service ports | M5 or plug-in coupling Ø4mm |
| Operating voltage (V) | 24 DC |
| Voltage Tolerance | ±10% |
| Electrical power consumption (W) | 0.5 |
| Duty Cycle | 100% continuously rated |
| Electrical Connection | Rectangular plug, 2 pole on top or downwards |
| Rating | IP40 (with rectangular plug connection) |
| Ex-approval | EEx ia IIC T6 |
| Explosion group | IIC |
| Max. safety voltage (V) | 28 |
| Max. safety current (mA) | 115 |
| Module type MP01 | 3/2-way (Type 6510) |
| Module type MP02 | 5/2-way (Type 6511) |
| Mounting position | Any |
| Mounting position | preferably solenoid system upright |
