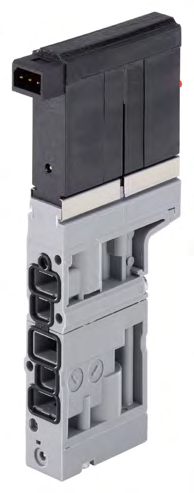

Type 6524 3/2-way or 2 × 3/2-way Solenoid Valve
The Type 6524 solenoid valve combines a pilot flipper solenoid valve Type 6144 and a pneumatic seat valve. It features a compact design, low power consumption, and fast switching times, making it ideal for pneumatic applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Product Properties 3/2-way valve | 3/2-way solenoid valve |
| Product Properties 2x3/2-way valve | 2x3/2-way solenoid valve |
| Dimensions | Refer to chapter 5 |
| Seal | FKM |
| Seal | NBR |
| Seal | PUR |
| Body | PPS |
| Body | polyamide |
| Weight 3/2-way valve | 20g |
| Weight 2x3/2-way valve | 40g |
| Manual Override | Standard |
| Orifice | DN4.0 |
| Pneumatic Module | With plug-in coupling, Ø6mm, Ø1/4'' |
| Circuit Function | C and D |
| Duty Cycle | 100% continuous operation |
| Switching Frequency | Approx. 1000c.p.m. |
| Switching Time Opening | <10ms |
| Switching Time Closing | <10ms |
| Operating Voltage | 24VDC |
| Nominal Power 3/2-way valve | 0.8W |
| Nominal Power 2x3/2-way valve | 2x0.8W |
| Voltage Tolerance | ±10% |
| Operating Medium | Lubricated or oil-free compressed dry air, neutral gases (5μm filter recommended) |
| Medium Temperature | -10°C...+50°C |
| Electrical Connection 3/2-way valve | Rectangular plug with 2 pins, raster 5.08mm |
| Electrical Connection 2x3/2-way valve | Rectangular plug with 3 pins, raster 2.54mm |
| Degree of Protection | IP40 with rectangular cable plug |
| Protection Class | III according to VDE 0580 |
| Explosion Protection | Optional, PTB 07 ATEX 2048 X / IECEx PTB 07.0063 X |
| Installation Position | As required |
| Installation Position | preferably with actuator upright |
| Mounting 3/2-way valve | With 2 screws M2×20 |
| Mounting 2x3/2-way valve | With 2 screws M2×28 |
| Ambient Temperature | -10°C...+55°C |
