0287型二位二通电磁阀

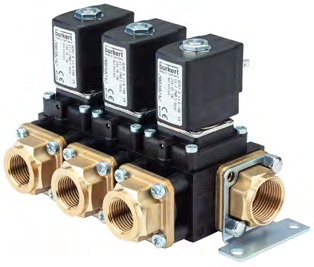

The 0287 model is a compact solenoid valve designed for neutral media, featuring modular block solutions with 2 to 8 valves. It is suitable for applications such as compressed air and water.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Dimensions | Refer to section 5.1 |
| Material | Brass, FKM, PPE/PA |
| Connector | Brass |
| Seal | FKM |
| Valve Body | PPE/PA |
| Internal components | Stainless steel 1.4105, 1.4310 |
| Nominal Diameter | DN13 |
| Insulation class of solenoid coil | H class |
| Continuous operation | 100% ED |
| Switching time | 0.1 to 0.5s |
| Operating Voltage | 24V DC, 24V 50Hz, 230V 50Hz |
| Voltage Tolerance | ±10% |
| Media | Neutral gases and liquids (e.g., compressed air, water) |
| Media temperature | 0°C to +70°C |
| Ambient Temperature | Max +55°C |
| Protection Class | IP65 |
| Certifications | CE |
| Certifications | EAC |
| Certifications | UL |
| Certifications | FM |
| Installation Position | Any |
| Installation Position | preferably with actuator upright |
| Power (AC) | 9.5VA (inrush), 5VA (holding) |
| Power (DC) | 6W (cold), 5W (hot) |
| Pressure Range | 0.5 to 10 bar |
| Port Size | G1/2 |
| Weight | 1.3kg |
| Order Number | 20040763 (24V DC), 20040764 (24V 50Hz), 20040765 (230V 50Hz) |
