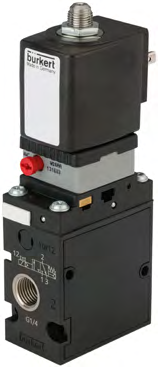

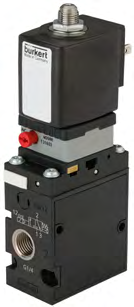

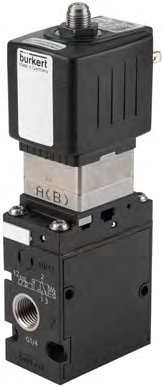

6518 Type Pneumatic Servo-Assisted 3/2-Way Solenoid Valve
The 6518 type is a pneumatic servo-assisted 3/2-way solenoid valve designed for high flow rates and low power consumption. It is modular and can be used individually or in combination with other products. It is suitable for applications requiring reliable switching and is available in various versions, including standard, Ex mb, Ex eb mb, and Ex ia.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Dimensions | Refer to section 6 |
| Material | NBR |
| Material | PUR |
| Sealing | Glass fiber reinforced polyamide |
| Drive Type | Electromagnetic |
| Manual Operation | Standard manual override |
| Circuit Function | MP07 |
| Continuous Rating of Electromagnetic Coil | 100% ED |
| Switching Time | 20ms (open), 40ms (close) |
| Operating Voltage | 24VDC, 24/110/230VUC |
| Protection Class | IP65 |
| Ambient Temperature | -25°C to +55°C |
| Explosion-Proof Certification | ATEX |
| Explosion-Proof Certification | IECEx |
| Flow Rate | 1300L/min |
| Pressure Range | 2-10bar |
| Electrical Connection | G1/4, NPT1/4 |
| Power Consumption | 1.7W (DC), 6.2VA/W (AC) |
| Certification | SIL2 according to IEC 61508 |
