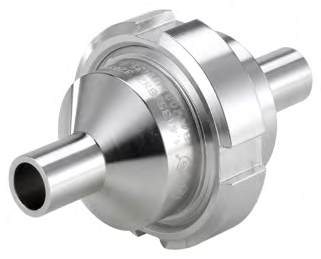

Type BBS-10 Check Valve
The Type BBS-10 is a sterile check valve with welded connections, designed for liquid applications. Its eccentric design and specially designed internal geometry enable nearly complete draining in a horizontal installation position. The two-part design allows for freely selectable flow direction, making it versatile and efficient.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Material (Wetted) | Stainless steel 1.4435/316L, except for: Ball cap: PTFE, Spring: stainless steel 1.4401/316, Special materials o.r. |
| Material (Non-wetted) | Stainless steel 1.4305/303 or equivalent |
| Seal | EPDM |
| Seal | FEP |
| Seal | PTFE |
| Ball | Stainless steel 1.4435/316L with PTFE ball |
| Surface Quality | Wetted surface: Ra≤0.76μm (ASME BPE SF3), other surfaces o.r. |
| Operating Pressure | Max. 8bar |
| Standard opening pressure | 0.2bar |
| Operating Medium | Liquids |
| Medium Temperature (EPDM seal material) | -40°C to +90°C, short-term up to 140°C |
| Medium Temperature (FEP seal material) | -60°C to +160°C, short-term up to 205°C |
| Nominal Diameter | DIN DN08...DN100, ISO DN08...DN100, ASME DN¼"...DN4", Customized o.r. |
| Ambient Temperature | -20°C to +80°C |
| Certificate | Material certificate 3.1 |
| Foods and beverages/Hygiene | FDA |
| Foods and beverages/Hygiene | USP |
