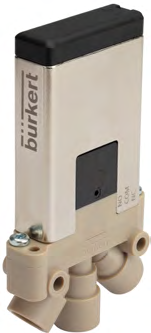

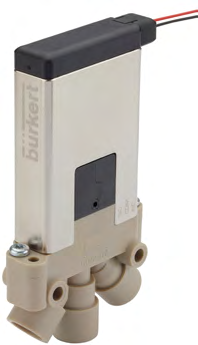

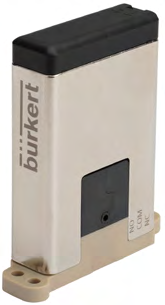

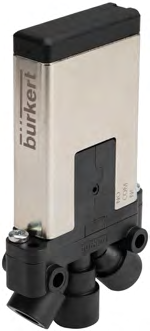

6757 Whisper Valve
The 6757 Whisper Valve is a compact and efficient solenoid valve designed for fluid control applications. It features low noise operation (<45 dB), high chemical resistance, and a pressure range up to 16 bar.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Dimensions | 18×69mm |
| Materials | FFKM |
| Materials | EPDM |
| Materials | FKM |
| Materials | PEEK |
| Materials | PPS |
| Internal Volume | 550μl |
| Nominal Diameter | DN1.4, DN4.0 |
| Pressure Range | 0-16bar |
| Duty Cycle | 100% ED |
| Switching Time | 7ms (pressure range 0-10%) |
| Electrical Connection | 2505 plug-in connection |
| Voltage | 12V DC, 24V DC |
| Power | 12V: 5.0W, 24V: 4.5W |
| Medium Temperature | FFKM: +15°C to +50°C, FKM: 0°C to +50°C, EPDM: 0°C to +50°C |
| Ambient Temperature | 0°C to +50°C |
| Protection Class | IP30 |
| Flow Characteristics-Kv Value (Water) | 0.055-0.330m³/h |
| Flow Characteristics-Cv Value (Water) | 0.064-0.382gpm |
| Flow Characteristics-Q Value (Air) | 60-405l/min |
| Connection Type | G⅛, G¼ |
| Certification | FDA, EN 60529 |
| Material Chemical Resistance | Verified via Burkert resistApp |
