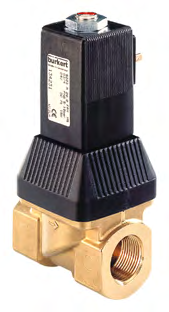

6223 Type
The 6223 Type is a solenoid valve designed for high flow rate control of liquids, featuring low hysteresis, high repeatability, and fast response time.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Dimensions | DN10, DN13, DN20 |
| Sealing Material | FKM |
| Sealing Material | other materials available upon request |
| Valve Body | Brass |
| Valve Body | other materials available upon request |
| Electrical Function | A |
| Leakage | <5% |
| Repeatability | <1% F.S. |
| Sensitivity | <1% F.S. |
| Control Ratio (10-90%) | 1:10 |
| Response Time | <200ms |
| Pressure Range | 0.5-10bar |
| Operating Mode | Continuous operation 100% ED |
| Operating Voltage | 24V DC (12V optional) |
| Power | 10W |
| PWM Frequency | 280Hz |
| Medium | Neutral liquids |
| Medium Temperature | -10°C to +90°C |
| Maximum Flow | 21mm²/s (21cSt) |
| Connection Type | DIN EN 175301-803 A |
| Pipeline Interface | G3/8, G1/2, G3/4, G1 |
| Protection Level | IP65 |
| Ambient Temperature | -10°C to +55°C |
| Installation Position | Any |
| Installation Position | recommended on horizontal axis |
| Flow Coefficient | 1.4-5.0m³/h |
| Maximum Current | 300-620mA |
