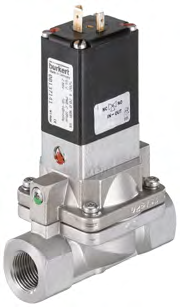

5282 Type Solenoid Valve
The 5282 Type solenoid valve is a servo-assisted diaphragm valve designed for fluid control applications. It operates with minimal pressure and is suitable for various media, including aggressive fluids.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Dimensions | Refer to size details on page 7 |
| Sealing Material | NBR |
| Sealing Material | EPDM |
| Sealing Material | FKM |
| Base Material | Stainless steel 1.4581/316CB |
| Thread Version | DN 13-DN 50 Stainless steel 1.4581/316CB |
| Flange Version | DN 13-DN 50 Stainless steel CF3M |
| Valve Inner Diameter | DN 13-DN 65 |
| Circuit Function | Type A and B |
| Coil Insulation Class | Epoxy encapsulated coil class F |
| Operating Mode | Continuous operation 100% ED |
| Switching Time | Open: 0.1-0.8s, Close: 1.0-4.0s |
| Operating Voltage | 24VDC, 24V/50Hz, 230V/50Hz, 24VAC/DC, 230VAC/DC |
| Function | Start AC 30VA, Operate AC 15/8VA, DC operation 11/8W |
| Explosion Protection Level | AC 40VA, DC operation 40W start/3W operate |
| Medium Temperature | NBR: 0°C-80°C, EPDM: -25°C-90°C, FKM: 0°C-90°C |
| Electrical Connection | DIN EN 175301-803 standard |
| Protection Level | IP65 with DIN EN 175301-803 A type connector |
| Certification | CE |
| Certification | EAC |
| Explosion Proof | ATEX/IECEx certified for Zone 1/21 |
| Drinking Water | Compliant with UBA standards for PF39/PF36 |
| Installation Position | Any |
| Installation Position | recommended above the actuator |
| Ambient Temperature | Max +55°C |
