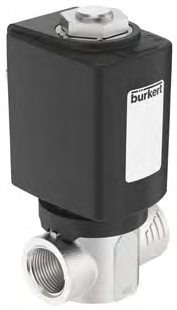

6240 Type Solenoid Valve
The 6240 Type solenoid valve is a servo-assisted valve designed for fluid control applications. It features a kick and drop system for energy efficiency and is available in various configurations for different pressure ranges.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Dimensions | Refer to detailed drawings |
| Material | Brass, Stainless Steel 1.4404/316L |
| Nominal Diameter | DN6, DN12, DN13 |
| Circuit Function | A |
| Circuit Function | B |
| Coil Insulation Class | H |
| Duty Cycle | Continuous operation 100% ED |
| Switching Time DN6 | Open: 10-20ms, Close: 40-50ms |
| Switching Time DN12 | Open: 20-40ms, Close: 80-100ms |
| Switching Time DN13 | Open: 80-100ms, Close: 200-300ms |
| Switching Time High-Pressure DN16 and PN25 | Open: 200-300ms, Close: 300-600ms |
| Electrical Parameters | 24VDC, 24V50Hz, 24V60Hz, 110V50Hz, 230V50Hz, 240V60Hz |
| Power Consumption | Refer to performance table |
| Voltage Tolerance | ±10% |
| Operating Medium | Neutral gases and liquids |
| Operating Medium | such as compressed air |
| Operating Medium | water |
| Operating Medium | hydraulic oil |
| Operating Medium | steam |
| Standard Version | FKM/FKM: -10°C to +140°C, EPDM/EPDM: -30°C to +120°C, PTFE/PEEK DN6: -40°C to +180°C |
| High-Pressure Version | PTFE/PEEK DN12: -40°C to +140°C, PTFE/PEEK DN13: -40°C to +80°C |
| Certifications | UL, FDA, ATEX/IECEx |
| Connection Type | DIN EN 175301-803 A |
| Pipeline Interface | G1/4, G1/2, NPT1/4, NPT1/2, Rc1/4, Rc1/2 |
| Protection Class | IP65 |
| Ambient Temperature | Max +55°C |
| Ambient Humidity | Max 90% |
| Maximum Viscosity | 21mm²/s (21cSt) |
| Pressure Range | 0-250bar |
| Flow Rate | Refer to order table |
