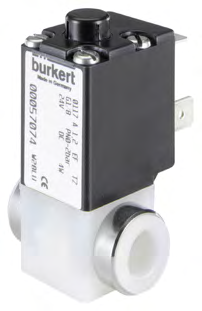

Type 0117 2/2-way plunger solenoid valve
The Type 0117 is a normally-closed direct-acting plunger-type solenoid valve with a PTFE-coated diaphragm, designed to isolate fluid from the solenoid system. It features compact design, low power consumption, and short response times.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Material | PTFE/EPDM, PTFE/FKM, EPDM/FKM |
| Body Material | ETFE (TEFZEL) |
| Coil Material | Epoxy |
| Orifice | DN1.2...DN2.0 |
| Circuit Function | A |
| Thermal Insulation Class | Epoxy coil class H |
| Duty Cycle | 100% continuous operation |
| Switching Frequency | Max. 300c.p.m. |
| Switching Time | Opening: approx. 20ms, Closing: approx. 20ms |
| Operating Voltage | 12V DC, 24V DC, 24V UC, 220/230V UC |
| Electrical power consumption | 4W |
| Voltage Tolerance | ±10% |
| Operating Medium | Alkalis |
| Operating Medium | mineral acids |
| Operating Medium | organic acids |
| Operating Medium | washing and bleaching lyes |
| Operating Medium | oxidising acids and lyes |
| Operating Medium | saline solutions |
| Operating Medium | oils |
| Operating Medium | waste gases |
| Medium temperature | -10°C...+70°C |
| Viscosity | Max. 21mm²/s |
| Electrical Connection | Plug contacts according to industry standard form A for cable plug Type 2507 |
| Degree of Protection | IP65 with cable plug |
| Installation Position | As required |
| Installation Position | preferably with actuator upright |
| Ambient Temperature | Max. +55°C |
| Port Connection | G1/8, NPT1/8, UNF1/4-28 |
| Pressure Range | 0...1.5bar (DN1.6), 0...1.0bar (DN2.0) |
| Kv value water | 0.06m³/h (DN1.6), 0.09m³/h (DN2.0) |
| Seal Material | PTFE/EPDM, PTFE/FKM |
