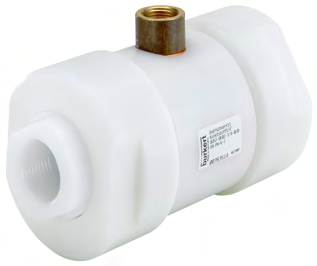

Type TRF003 2/2 Way Pinch Valve
The Type TRF003 pinch valve is externally controlled and suitable for potentially explosive environments. It consists of a body with threaded or flange connections and a cylindrical sleeve. The valve is normally open and shuts off by applying pressure to the sleeve's exterior. It is compatible with compressed air or water as control media.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Body Material Variant I | POM |
| Seal Material Variant I | Natural rubber (others on request) |
| Operating Pressure Variant I | ≤6bar |
| Pilot Pressure Variant I | 2...2.5bar |
| Medium Temperature Variant I | ≤+80°C |
| Operating Medium Variant I | Gaseous, liquid, granular, pulpy and free-flowing media, dust |
| Control Medium Variant I | Water |
| Control Medium Variant I | air |
| Port Connection Variant I | Threaded port R½...R2 |
| Body Material Variant II | GG20 with steel fitting |
| Seal Material Variant II | Natural rubber (others on request) |
| Operating Pressure Variant II | ≤6bar |
| Pilot Pressure Variant II | 2...2.5bar |
| Medium Temperature Variant II | ≤+80°C |
| Operating Medium Variant II | Gaseous, liquid, granular, pulpy and free-flowing media, dust |
| Control Medium Variant II | Water |
| Control Medium Variant II | air |
| Port Connection Variant II | Threaded port R¾, R1 |
| Body Material Variant III | GG20 |
| Flange Material Variant III | DN40...100 |
| Seal Material Variant III | Natural rubber (others on request) |
| Operating Pressure Variant III | ≤4bar |
| Pilot Pressure Variant III | 1.8...2.0bar |
| Medium Temperature Variant III | ≤+80°C |
| Operating Medium Variant III | Gaseous, liquid, granular, pulpy and free-flowing media, dust |
| Control Medium Variant III | Water |
| Control Medium Variant III | air |
| Port Connection Variant III | Flange |
