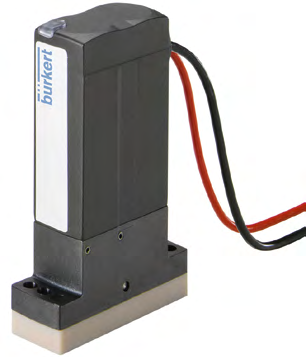

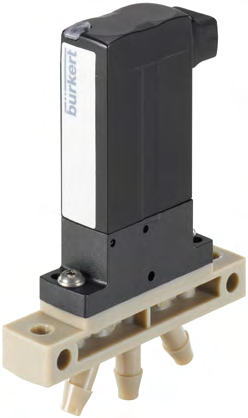

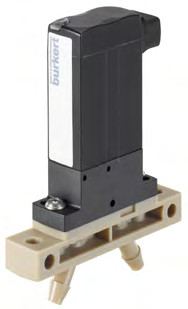

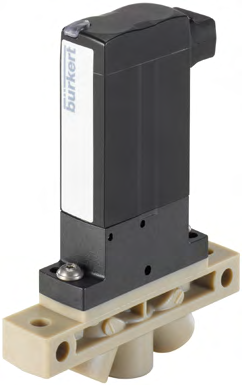

6624 Type Bürkert Twin Power Rocker Solenoid Valve
The 6624 Type Bürkert Twin Power Rocker Solenoid Valve is a compact and efficient valve designed to meet the highest chemical resistance requirements. It features a unique Bürkert TwinPower actuator design, offering high performance in a small footprint.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Material | FFKM |
| Material | FKM |
| Material | EPDM |
| Material | PEEK |
| Material | PPS |
| Valve Body | PEEK |
| Valve Body | PPS |
| Internal Spring | Bürkert: 110μL and above |
| Flying Lead Version Volume/Minimum Bending Radius | 285μL and above/8mm |
| Nominal Diameter | DN0.8 (5bar), DN1.6 (2bar) |
| Circuit Function | A |
| Circuit Function | B |
| Circuit Function | T |
| Switching Time | 10ms (pressure increase 0...10%), 13ms (pressure decrease 100...90%) |
| Operating Voltage | 12VDC, 24VDC |
| Power Consumption | 1W (energy-saving mode), 4W (standard mode) |
| Switching Frequency | 5Hz |
| Voltage Tolerance | 12VDC ±10%/-5%, 24VDC ±10%/-5% |
| Medium Temperature | FFKM: -10...+55°C (suitable for DN0.8), EPDM: -10...+55°C (suitable for DN1.6) |
| Ambient Temperature | -10...+55°C |
| Flow Rate | Max 21mm³/s |
| Connection Method | PFA flying lead, 0.5mm², AWG20, length 300mm |
| Pipeline Interface | Bürkert flange (10x30mm), UNF1/4 inch-28 |
| Protection Class | IP40 (flying lead version), IP30 (2505 version) |
| Installation Position | Preferably with actuator upright |
| Certification and compliance | Complies with ISO 12238:2001 |
| Ambient Temperature Range | -10°C to +55°C |
| Pressure Resistance | 5bar (DN0.8), 2bar (DN1.6) |
