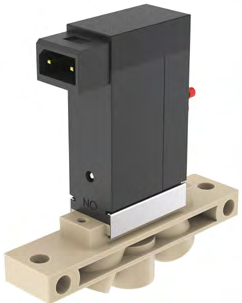

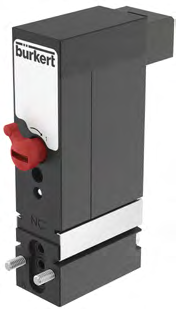

Type 6144 Solenoid Valve
The Type 6144 solenoid valve is a direct-acting, 2-position, 3-way valve designed for neutral gases and liquids. It features compact dimensions, low power consumption, and various connection options.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Dimensions | 10×18mm, 10×32mm, 10×42mm, 26×41mm |
| Material | PPS |
| Material | FKM |
| Material | EPDM |
| Valve Body Material | PPS |
| Sealing Material | FKM |
| Sealing Material | EPDM |
| Nominal Width | DN0.6 |
| Duty Cycle | 100% ED |
| Switching Time | 8ms (opening), 10ms (closing) |
| Electrical Connection | 2505 type plug, FEP cable, RM5.08mm pin, M8×1 round plug |
| Operating Voltage | 12VDC, 24VDC |
| Power Consumption | 0.8W |
| Operating Frequency | 17Hz ±10% |
| Ambient Temperature | -10°C to +55°C |
| Protection Class | IP65 with cable, IP30 |
| Certification | ATEX, IECEx, UL429, CCC |
| Connection Type | Clamp connection |
| Pressure Range | 0-10bar, 0-3bar |
| Manual Operation | Available with angle protection |
| Circuit Function | WWC |
| Circuit Function | WWD |
| Circuit Function | WWT |
| Circuit Function | WWK |
| Circuit Function | WWS |
