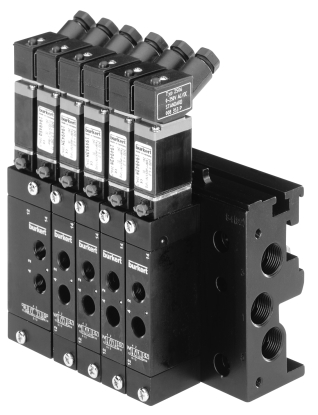

0450 EEXi High Flow Aluminum Valves
The 0450 EEXi centralized process actuation system is designed for hazardous areas, offering high flow rates and durable aluminum anodized bodies. It ensures reliable operation even under non-lube conditions and is pre-tested for easy installation.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Valve Type | 0450 EEXi |
| Materials | Aluminum anodised |
| Valve Body | Aluminum anodised |
| Valve Internals | Al |
| Valve Internals | St |
| Valve Internals | Steel |
| Valve Internals | brass |
| Seals | POM/NBR |
| Pneumatic Modules | Aluminum anodised |
| Fluids | Filtered compressed air |
| Fluids | lubricated or unlubricated |
| Manual Override | Standard |
| Valve Port Connection | G1/8 |
| Rating | IP65 with plugs |
| Power Supply | 24V/DC |
| Certification | EEx ia IIC T6 |
| Intrinsically Safe Barrier | Required |
| Ambient Temperature | -10°C to +50°C at T6, -10°C to +60°C at T5 |
| Configuration | To customer requirement |
| Electrical Connection Options | Cable plug 2506, EaseOn cable plug 2510 |
| Prewired Junction Boxes | WAGO (on request), Harting (on request) |
| Circuit Function H(5/2) Flow Rate | 750l/min |
| Circuit Function H(5/2) Pressure Range | 2-8bar |
| Circuit Function H(5/2) Reset | Air spring |
| Circuit Function H(5/2) Response Time Opening | 19ms |
| Circuit Function H(5/2) Response Time Closing | 25ms |
| Circuit Function L(5/3) Flow Rate | 650l/min |
| Circuit Function L(5/3) Pressure Range | 2-8bar |
| Circuit Function L(5/3) Reset | Spring |
| Circuit Function L(5/3) Response Time Opening | 17ms |
| Circuit Function L(5/3) Response Time Closing | 27ms |
| Circuit Function N(5/3) Flow Rate | 650l/min |
| Circuit Function N(5/3) Pressure Range | 2-8bar |
| Circuit Function N(5/3) Reset | Spring |
| Circuit Function N(5/3) Response Time Opening | 16ms |
| Circuit Function N(5/3) Response Time Closing | 16ms |
