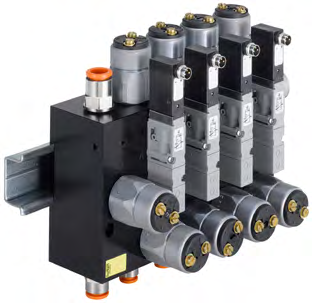

Type MKRS
The Type MKRS redundancy valve block enhances the versatility of valve island Type 8640 and automation system Type 8644. It integrates redundancy valve functions with valve Types 6524 and 6525, ensuring compliance with EN ISO 13849 machinery directives for higher safety functionalities up to performance level d.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Valve Block Material | Anodised aluminium |
| Protection Class | III according to VDE 0580 |
| Supply Port Connection | D8 |
| Working Port Connection | D6 |
| Degree of Protection | IP20 |
| Installation | Any |
| Installation | preferably horizontal on the standard rail |
| Valve Body Material | PA |
| Circuit Function | 3/2-way valve (normally closed) |
| Power Consumption | 0.8W |
| Pilot Pressure | 2.5...10bar |
| Manual Override | No |
| Response Time | Opening: 15ms, Closing: 20ms |
| Operating Voltage | 24V |
| Medium | Oil-free or lubricated compressed dry air, neutral gases (5μm filter recommended) |
| Medium Temperature | -10...+50°C |
| Electrical Connection | Screw connection M3 |
| Ambient Temperature | -10...+55°C |
| Diaphragm Pressure Switch Material | Zinc-coated steel, CrVI-free |
| Seal Material | NBR |
| Function | Opener (normally closed) |
| Adjustment Range | 1...10bar (+0.5bar) |
| Switching Frequency | <200/min |
| Operating Voltage | Max. 42V |
