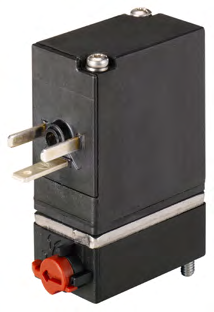

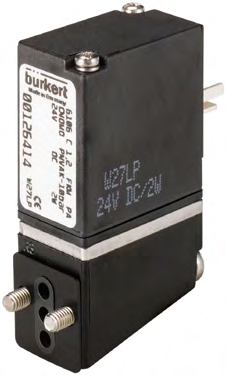

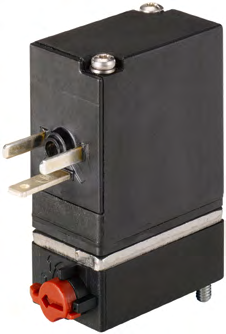

6106 Type Solenoid Valve
The 6106 type solenoid valve is designed for pneumatic applications, featuring a compact design and compatibility with ATEX Ex ia standards.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Dimensions | Valve width: 16mm |
| Material | FKM |
| Material | PA |
| Material | Stainless Steel |
| Nominal Diameter | DN0.9 and DN1.2 |
| Switching Time | Opening: ~25ms (pressure range 0-10%) Closing: ~25ms (pressure range 100%-90%) |
| Operating Voltage | 12-24V DC |
| Power Consumption | 1W or 2W |
| Frequency | 16Hz |
| Ambient Temperature | -10°C to +55°C |
| Protection Class | IP65 (with 2516 connector) |
| Maximum Pressure Difference | Vacuum to 10bar |
| Pipeline Interface | Burkert base (16x27mm), CNOMO base |
| Certification | ATEX II 2G Ex ia IIC T5, T6 Gb |
| Working Medium | Filtered neutral gases (5μm filter) |
| Installation Position | Any |
| Installation Position | preferably vertical |
