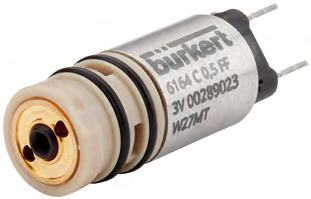

6164 Type Solenoid Valve
The 6164 Type solenoid valve is a compact and reliable solution designed for fluid control applications. It features a tight design with an installation width of 11mm, ensuring durability and high performance.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Dimensions | 11mm |
| Material | FKM |
| Material | PA |
| Material | LCP |
| Material | MS |
| Material | Stainless Steel |
| Sealing | PEEK |
| Gas Seal | Up to 10bar |
| Weight | 6g |
| Nominal Diameter | DN0.5, DN0.8, DN1.0, DN1.2 |
| Circuit Function | A |
| Circuit Function | B |
| Circuit Function | C |
| Circuit Function | D |
| Circuit Function | T |
| Service Life | 100,000,000 cycles |
| Performance Range | DN0.5(≤9bar), DN0.8(≤7.5bar), DN1.0(≤5bar), DN1.2(≤1.5bar) |
| Duty Cycle | 100% |
| Switching Time | ≤5ms |
| Operating Voltage | 12/24VDC |
| Power | 0.7W |
| Noise Level | 42dB |
| Ambient Temperature | -10°C to +55°C |
| Protection Class | IP00, IP40, IP54 |
| Installation Position | Any |
| Certification | ATEX |
| Certification | IECEx |
| Explosion Protection | Ex ib IIC T6...T4 Gb, Ex ib IIIB T155°C Db |
