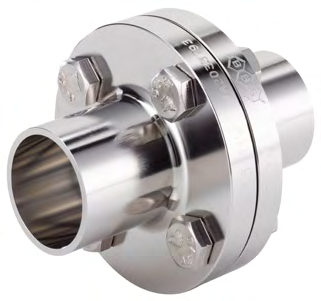

Type BBS-06 Hygienic Flange Connection with Welded Connection
The Type BBS-06 is a hygienic flange connection designed according to DIN 11864-2 or BBS-sterile contour. It ensures gap-free connections for sterile applications, with O-rings that are chambered and pressed via a metallic stop. It is part of the BBS modular system and offers excellent cleanability for critical applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Material (Wetted parts) | Stainless steel 1.4435/316L, Special materials like Hastelloy 2.4602, titanium, stainless steel 1.4539/904L etc. on request |
| Material (Non-wetted parts) | Stainless steel 1.4305/303 or equivalent |
| Seal Material | EPDM |
| Seal Material | FEP |
| Surface Quality (Wetted surface) | Ra≤0.76μm (ASME BPE SF3), other surfaces on request |
| Operating Pressure (Aseptic Variant) | DIN DN10...DN40: 25bar, DIN DN50...DN100: 16bar, DIN DN125...DN150: 10bar, ISO DN08...DN25: 25bar, ISO DN32...DN80: 16bar, ISO DN100: 10bar, ASME DN½"...DN1½": 25bar, ASME DN2"...DN4": 16bar |
| Operating Pressure (Sterile Orbital Variant) | 0.2bar abs...16bar |
| Operating Medium | Gases or liquids |
| Medium Temperature (EPDM seal material) | -40°C to +90°C, short-term up to 140°C |
| Medium Temperature (FEP seal material) | -60°C to +160°C, short-term up to 205°C |
| Ambient Temperature | -20°C to +80°C |
| Certificate | Material certificate 3.1 |
| Food and Beverages/Hygiene | FDA |
| Food and Beverages/Hygiene | USP |
| Nominal Diameter (Aseptic Variant) | DIN DN10...DN150, ISO DN08...DN125, ASME DN½"...DN4" |
| Nominal Diameter (Sterile Orbital Variant) | DIN DN10...DN125, ISO DN08...DN125, ASME DN½"...DN4" |
