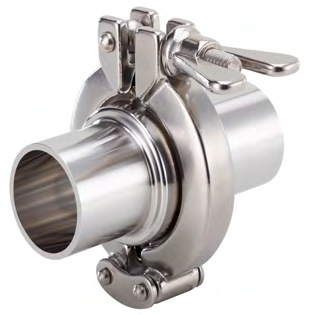

Type BBS-05 Hygienic Clamp Connection
The Type BBS-05 hygienic clamp connection is designed according to DIN 11864-3 or BBS-sterile contour, ensuring gap-free connections for sterile applications. It is part of the BBS modular system and features traceable wetted materials.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Material (Wetted) | Stainless steel 1.4435/316L |
| Material (Non-wetted) | Stainless steel 1.4305/303 or equivalent |
| Seal Material | EPDM |
| Seal Material | FEP |
| Surface Quality | Ra ≤0.76μm (ASME BPE SF3) |
| Operating Pressure DIN DN10...DN40 | 40bar |
| Operating Pressure DIN DN50...DN200 | 25bar |
| Operating Pressure ISO DN08...DN25 | 25bar |
| Operating Pressure ISO DN32...DN80 | 40bar |
| Operating Pressure ASME DN½...DN1½ | 40bar |
| Operating Pressure ASME DN2...DN4 | 25bar |
| Sterile Orbital Variant | 0.2bar abs...16bar |
| Medium Temperature EPDM | -40°C to +140°C |
| Medium Temperature FEP | -60°C to +205°C |
| Ambient Temperature | -20°C to +80°C |
| Nominal Diameter DIN DN10...DN100 | Customizable |
| Nominal Diameter ISO DN08...DN100 | Customizable |
| Nominal Diameter ASME DN½...DN4 | Customizable |
| Port Connection | Standard clamp |
