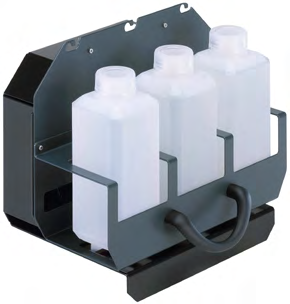

Type MZ30 Reagent Unit
The Type MZ30 reagent unit is designed for storing and monitoring reagents to ensure the fully automated operation of flow injection analysis modules. It detects reagent levels and notifies users of necessary replacements while verifying the correct reagent type and expiration date.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Non-media contacting parts | Polycarbonate, powder-coated steel, silicone, polyurethane, PE |
| Media contacting parts | FKM |
| Media contacting parts | PE |
| Media contacting parts | PFA |
| Compatibility | Type MS06 iron measurement module and Type 8905 online water analysis system |
| Dimensions | 206x154x149.6mm |
| Weight | 1.42kg |
| Measurement technology | Electronic level measurement (0-250ml) and barcode recognition |
| Sensor Type | Factory-calibrated weight sensor, barcode reader |
| Measurement accuracy | 2ml |
| Operating Voltage | 24V DC via backplane of Type 8905 system |
| Power Consumption | Max. 1W |
| Operating Medium | Reagent, calibration standard, and cleaning solution in 250ml bottles |
| Process Connection | Hose (integrated in product) |
| Electrical Connection | M12 connector |
| Data transmission | Via büS (Bürkert system bus, CANopen-based) or CANopen |
| Operating Temperature | +10°C to +40°C, recommended 20°C |
| Storage and Transport Temperature | -10°C to +60°C, without reagent |
| Relative Humidity | ≤90%, non-condensing |
| Altitude | Max. 2000m |
| Protection Class | IP65 (when installed in Type 8905 housing), IP20 (as a single product housing) |
| Pollution Degree | 2 according to UL/EN 61010-1 |
| Housing Material | Polycarbonate |
