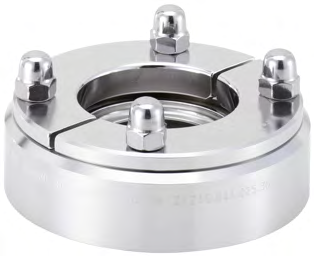

Type BBS-07 Block Flange
The Type BBS-07 block flange is designed for direct tank installation and is available in various designs. It is part of the BBS modular system, ensuring compatibility and flexibility.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Material Wetted | Stainless steel 1.4435/316L |
| Material Non-wetted | Stainless steel 1.4305/303 or equivalent |
| Seal Material | EPDM |
| Seal Material | FEP |
| Surface Roughness | Ra<0.76μm (ASME BPE SF3) |
| Operating Pressure Clamp Ø≤64mm | 25bar |
| Operating Pressure Clamp Ø77.5mm and 91mm | 16bar |
| Operating Pressure Clamp Ø≥106mm | 10bar |
| Operating Medium | Gases or liquids |
| Medium Temperature EPDM | -40°C to +140°C |
| Medium Temperature FEP | -60°C to +205°C |
| Connections | Sterile contour clamp connections according to DIN 11864-3, Clamp connections according to DIN 32676, Sterile contour flange connections according to DIN 11864-2, Flange connections according to BBS sterile contour |
| Nominal Diameter DIN | DN10 to DN150 |
| Nominal Diameter ISO | DN08 to DN100 |
| Nominal Diameter ASME | DN½'' to DN4'' |
| Ambient Temperature | -20°C to +80°C |
| Certificate | Material certificate 3.1 |
| Food and Beverage Hygiene Certification | FDA |
| Food and Beverage Hygiene Certification | USP |
