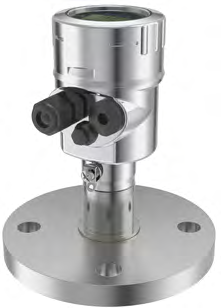

Type 8140 Radar Filling Level Meter
The Type 8140 is a non-contact radar level meter designed for continuous level measurement of liquids and bulk solids. It is equipped with various antennas and connection types, making it suitable for a wide range of applications, including aggressive fluids and hygienic requirements.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Material | Stainless steel 316L (1.4404), glass (inspection window) |
| Non-wetted parts | Stainless steel 316L (1.4404), EPDM, PA |
| Grounding Terminal and Screw | Stainless steel 316L |
| Cable Gland | PA |
| Blind Plug | PA |
| Weight | Approx. 2...17.2kg (depending on process connection and antenna) |
| Measured quantity | Distance between the end of the sensor antenna and the product surface |
| Damping (63% of the input variable) | 0...999.9, adjustable |
| Operating mode | EU |
| Operating mode | Brazil |
| Operating mode | India |
| Operating mode | Malaysia |
| Operating mode | Kazakhstan |
| Blocking Distance | 4mm (Operating mode 1, 2, 4); 250mm (Operating mode 3) |
| Measuring Range Resolution | 1mm |
| Measurement Deviation | ±1mm for liquids (measurement distance >0.25m) |
| Non-repeatability | ≤1mm |
| Measuring frequency | W-band (80GHz technology) |
| Measuring cycle time | Approx. 200ms |
| Step Response Time | ≤3s |
| Temperature drift | <0.03%/10K related to the 16.7mA span |
| Operating voltage (U) | 12...35VDC |
| Power source (not supplied) | Limited energy circuit (power max. 100W) according to IEC 61010-1 |
| DC reverse polarity protection | Yes |
| Residual ripple (at DC) | For 12V<U<18V: ≤0.7V; For 18V<U<35V: ≤1.0V |
| Overvoltage category according to IEC 61010-1 | Category III |
| Protection class according to IEC 61010-1 | Class III |
| Starting Current | ≤3.6mA; ≤10mA for 5ms after switching on |
| Load Resistor | (Uq-10V)/0.022A |
| Output | 4...20mA/HART |
| Output Signal Range | 3.8...20.5mA/HART (default setting) |
| Signal Resolution | 0.3μA |
| Output Current | Max. 22mA |
| Fault Signal | Current output: mA value unchanged, ≥21mA or ≤3.6mA (adjustable) |
| Voltage supply cable | Cable diameter: 5.9mm or 6...12mm |
| Wireless communication | Bluetooth LE 4.1 |
| System requirements | iOS 8 or newer, Android 5.1 or newer, Windows 10 or newer |
| Number of participants | Max. 1 |
| Typical effective range | 25m (82ft) |
| Ambient Temperature | -40...+80°C (-40...+176°F) |
| Relative air humidity | Max. 95% |
| Height Above Sea Level | By default: max. 2000m; With connected overvoltage protection: max. 5000m |
| Degree of Protection According to IEC/EN 60529 | IP66/IP67 with cable plug mounted and tightened M20×1.5 |
| Pollution Degree | Degree 4 (when used with fulfilled housing protection) |
| Measuring Range | 0...120m (plastic horn antenna); 0...10m (G ¾ or NPT ¾); 0...30m (G 1½ or NPT 1½); 0...30m (DN 50); 0...30m (hygienic connection) |
| Process Temperature | -40...+80°C (-40...+176°F) (plastic horn antenna); -40...+150°C (-40...+302°F) (other variants); -60...+150°C (-40...+302°F) (flange connection); -20...+150°C (-4...+302°F) (hygienic connection) |
| Process Pressure | -1...1bar (-100...100kPa/-14.5...14.5psig) (plastic horn antenna); -1...3bar (-100...300kPa/-14.5...43.5psig) (G 1½ PN 3); -1...40bar (-100...4000kPa/-14.5...580.2psig) (other variants); -1...25bar (-100...2500kPa/-14.5...362.6psig) (flange connection); -1...16bar (-100...1600kPa/-14.5...232.1psig) (hygienic connection) |
| Beam Angle | 4° (plastic horn antenna); 14° (G ¾ or NPT ¾); 7° (G 1½ or NPT 1½); 6° (DN 50); 6° (hygienic connection) |
