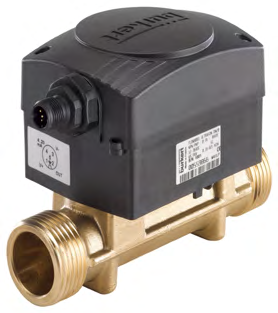

Type 8081 Ultrasonic Flowmeter
The Type 8081 ultrasonic flowmeter is designed for continuous water flow measurement, including water with low levels of contamination. It operates based on the time-of-flight (TOF) principle, ensuring high accuracy and minimal pressure loss.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Material-Non-wetted parts | Cover: PA, Housing: PPS, Screw: Stainless steel, Fixed connector: Silicone |
| Material-Wetted parts | Fitting body: Brass, Measuring tube: PES, Seal: EPDM |
| Pipe Diameter | DN15...DN25 |
| Measuring range | 0.06...200l/min |
| Measuring Element | 2 ultrasound emitter-receiver cells |
| Measurement Deviation | ≤(0.01% of full scale + 2% of measuring value) |
| Repeatability | ≤1% |
| Operating voltage (V+) | 12...36VDC |
| Current Consumption | <4mA |
| Consumption with load | <1A |
| Output-Pulse output | PNP or NPN, 0.2...36VDC, max. 700mA, min. 5mA |
| Output-Analog output | 4...20mA, sourcing mode and PNP transistor as default setting |
| Loop impedance | 1100Ω at 36VDC, 610Ω at 24VDC, 100Ω at 12VDC |
| Voltage supply cable | 1.5mm² max. cross-section |
| Fluid temperature | +5...+90°C |
| Fluid Pressure | PN16 (232.16PSI) |
| Pipe connection | G or NPT external thread; ¾”, 1” or 1¼” |
| Electrical Connection | 5-pin M12 male connector for 5-pin M12 female connector |
| Ambient Temperature | +5...+55°C |
| Relative Air Humidity | ≤80%, without condensation |
| Height Above Sea Level | Max. 2000m |
| Degree of Protection | IP65 with M12 cable plug plugged-in and tightened |
